Heavy Duty Cantilever Bracket | 750mm Length | Galvanised Finish | Ezy Strut

BRAND: EzyStrut
SKU: CB4-750H
$67.60 List price: $81.90
+
Heavy duty cantilever bracket with 750mm length and galvanised finish—ideal for industrial and commercial cable support systems. Built for durability, with compliance to AS/NZS 1170 standards and easy integration into existing structures.

Product Name/Title: CB4-750H Cantilever Bracket HDG

Brand: Ezy Strut

SKU: CB4-750H

Alternatively Known As: Heavy Duty Cantilever Bracket, Galvanised Cantilever Bracket, Ezy Strut Bracket

Technical Specifications
  • Channel: E1000
  • Hole Diameter: 14mm
  • Hole Spacing: 20.5mm from end

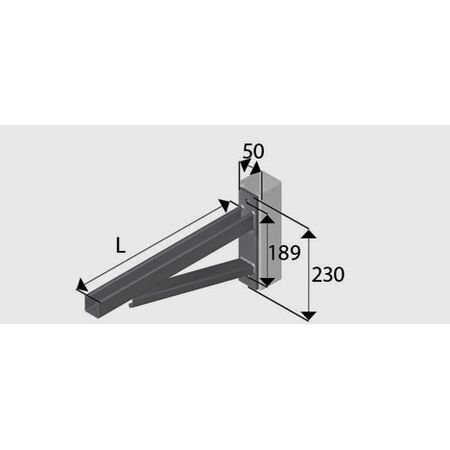

  • Dimensions (H x L x W): 50mm x 750mm x 100mm
  • Weight: 2.5 kg
Key Features
  • 300mm through to 900mm braced cantilever bracket.
  • Manufactured to complement the range of cable support systems.
  • Fully galvanised after fabrication for heavy duty protection.
  • Available in stainless steel grade 316 for corrosive environments.
  • Fibreglass brackets available upon request.
Professional Installation Requirements
  • Professional installation is recommended to ensure proper support and safety.
Applications
  • Industrial: Cable support systems in various applications
  • Commercial: Use in building and construction projects
Standards & Compliance
  • Complies with AS/NZS 1170 for structural design actions.
Environmental Benefits
  • Galvanised finish enhances durability and reduces the need for replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The CB4-750H Cantilever Bracket HDG is available now for immediate purchase. Ideal for industrial and commercial applications requiring robust cable support.
