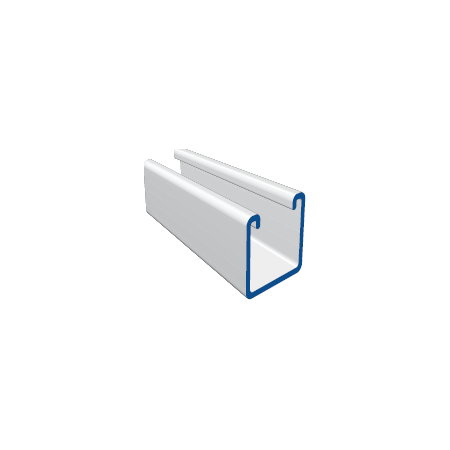

Heavy Duty Channel 41x41 Hot Dip Galvanised 3m Unistrut
Unistrut 41x41mm heavy-duty strut channel, hot dip galvanised, 3m length to AS1594 AS1365. Suited for structural and cable support.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Strip steel rolled to AS1594 and AS1365 standards
- Finish: Hot Dipped Galvanised (HG)
- Size: 41x41 mm cross-section
- Length: 3 meters
- Weight: Approximately 7 kg per 3 meter length
- Construction: Spot-welded combination members welded 75mm max on centre
- Design: Nut teeth grip channel edges for strong box configuration and resistance to longitudinal movement
- Dimensions (H x L x W): 41mm x 3000mm x 41mm
- Weight: 7 kg
Key Features
- Channel edges and nut’s tapered grooves act as guides to provide positive alignment of connection
- Nut teeth grip the channel’s inturned edges, tying the channel sides together in a 'box' configuration for added strength
- Longitudinal movement of nut is resisted as hardened teeth bite into the inturned edges
- Available in multiple finishes including Hot Dipped Galvanised for corrosion resistance
- Adjustable, demountable, and reusable design
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with structural steel systems to ensure safety and compliance with building codes.
Applications
- Structural support in construction and building projects
- Mounting and framing for electrical and mechanical installations
- Industrial shelving and racking systems
- Adjustable and reusable channel systems for various industrial uses
Standards & Compliance
- Complies with AS1594 – Steel sheet and strip
- Complies with AS1365 – Structural steel hollow sections
Environmental Benefits
- Hot dipped galvanised finish provides long-lasting corrosion resistance, reducing the need for frequent replacements and waste
- Reusable and adjustable design minimizes material waste and supports sustainable construction practices
Warranty Information
Warranty details available upon request; product quality guaranteed as per industry standards.
Available Now
The Heavy Duty Channel 41x41 | 3M Length | Hot Dipped Galvanised is available now for immediate purchase. Ideal for construction, industrial, and structural support applications.
