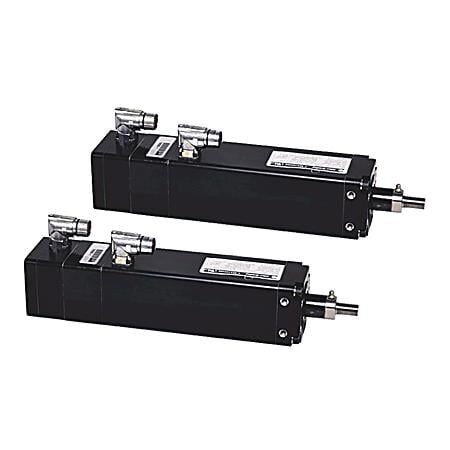

Product Name/Title: Allen-Bradley MP-Series Heavy Duty Electric Cylinder MPAIB5150CM34A
Brand: Allen-Bradley
SKU: MPAIB5150CM34A
Alternatively Known As: Electric Actuator Cylinder, Heavy Duty Linear Actuator, MP-Series Electric Cylinder
Technical Specifications
- Voltage: 460V AC
- Rod Stroke Length: 152.4 mm (6.0 in.)
- Ball Screw Pitch: 5.0 mm/rev (0.197 in./rev)
- Encoder: 1024 SIN/COS multi-turn absolute encoder
- Brake: 24 VDC
- Frame Size: 144 mm
- Mounting Options: Front face, side front, bottom
- Dimensions (H x L x W): 200mm x 300mm x 144mm
- Weight: 15 kg
Key Features
- Heavy duty electric cylinder with actuator rod and male rod end
- Frame size of 144mm
- Rod stroke length of 152.4 mm (6.0 in.)
- 5.0 mm/rev ball screw for precise linear movement
- 1024 SIN/COS multi-turn absolute encoder for accurate position feedback
- 24 VDC brake for controlled stopping
- Designed for front face, side front, and bottom mounting
Professional Installation Requirements
- Installation by a qualified electrician or automation specialist is required to ensure proper electrical connections and mechanical integration.
Applications
- Industrial automation and machinery requiring precise linear motion
- Heavy-duty manufacturing processes
- Robotics and assembly line actuators
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Electric actuation reduces reliance on hydraulic fluids, minimizing environmental contamination risks
- Energy-efficient motor design lowers power consumption during operation
Warranty Information
Includes Radwell 2-year warranty; factory warranty does not apply.
Available Now
The Allen-Bradley MP-Series Heavy Duty Electric Cylinder MPAIB5150CM34A is available for immediate purchase, ideal for industrial automation and heavy-duty manufacturing applications.
