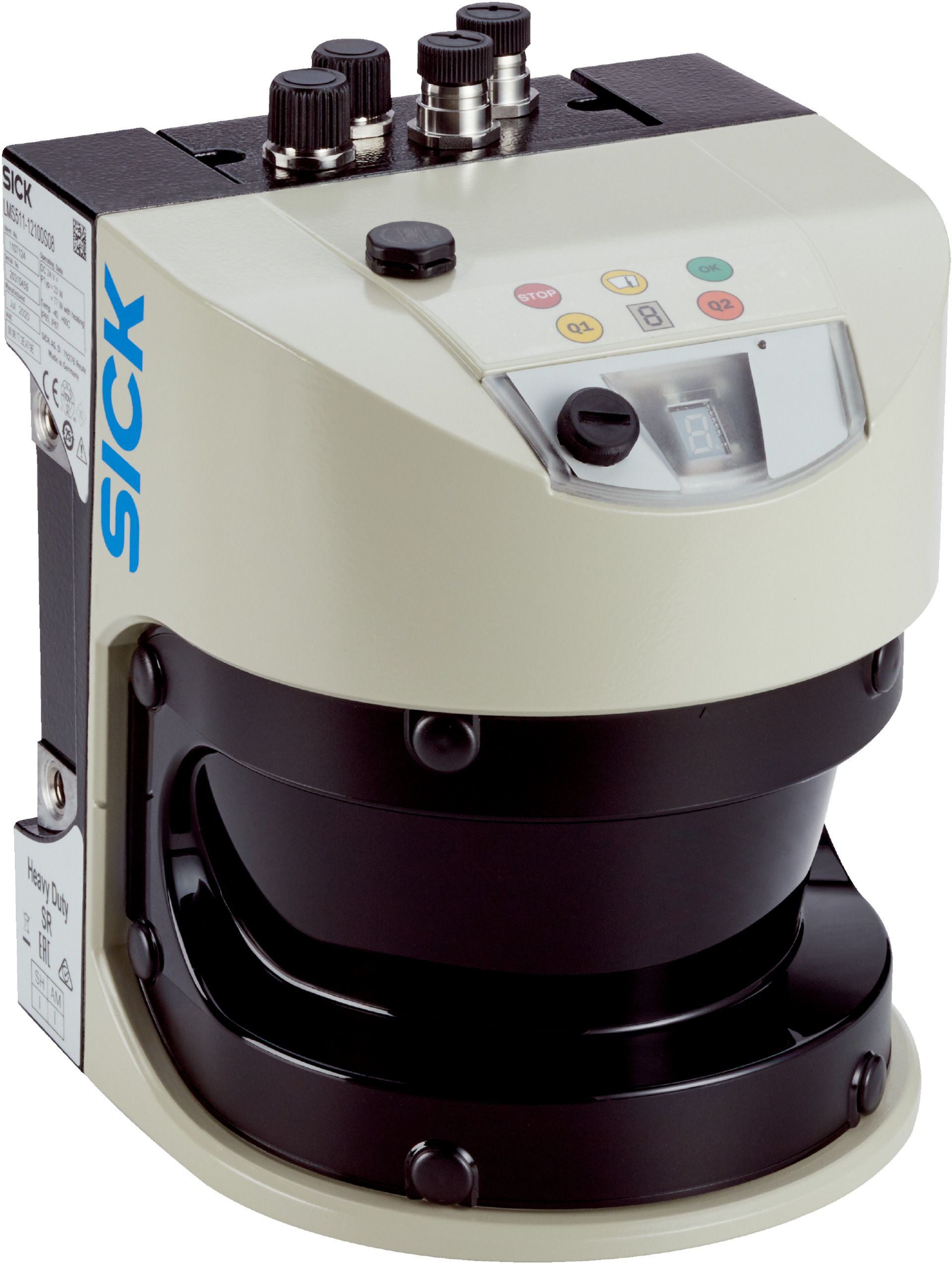

Heavy Duty Extended Range Laser Scanner | Infrared Light Source | IP65 & IP67 Rated | by SICK
The Heavy Duty Extended Range Laser Scanner is designed for harsh industrial environments, featuring an infrared light source and IP65/IP67 ratings for dust and water protection. With a wide aperture angle of 190° and multiple scanning frequencies, it excels in object detection and measurement applications, making it ideal for both indoor and outdoor use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 185mm x 160mm x 155mm
- Weight: 3.7 kg
Key Features
- Heavy-duty variant suitable for harsh environments
- Infrared light source (905 nm, ± 10 nm)
- Laser class 1 compliant with EN/IEC 60825-1 standards
- Wide aperture angle of 190° horizontal
- Multiple scanning frequencies: 25 Hz to 100 Hz
- Self-heating with integrated heating for cold environments
- High measurement accuracy with ±24 mm precision
- Supports up to 5 evaluated echoes
- Robust housing made of AlSi12 with polycarbonate scratch-resistant window
- IP65 and IP67 rated enclosure for dust and water protection
- Multiple interface options including Ethernet, Serial, CAN, and USB
- Advanced filtering options including echo, fog, particle, average, and glare filters
- Wide ambient operating temperature range from –40 °C to +60 °C
- High vibration and shock resistance
- Integrated parameter storage with cloning memory
Professional Installation Requirements
- Installation by qualified professionals is recommended to ensure proper setup and compliance with safety standards.
Applications
- Outdoor and indoor industrial environments
- Object detection and measurement
- Field evaluation and measurement data output
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Durable design reduces need for frequent replacements
- Energy-efficient operation with 22 W power consumption plus heating
- Supports industrial automation to optimize resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now

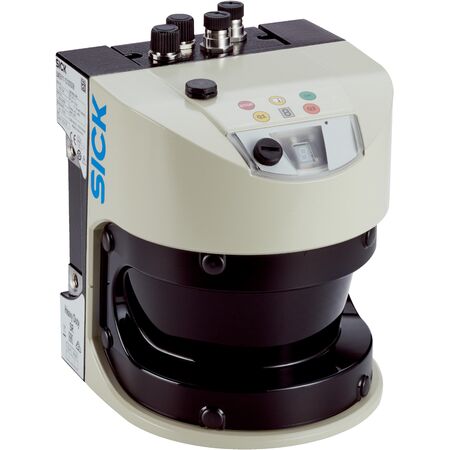

The SICK LMS511-15100 Heavy Duty Extended Range Laser Scanner is available for immediate purchase, ideal for industrial automation, safety monitoring, and object detection applications.
