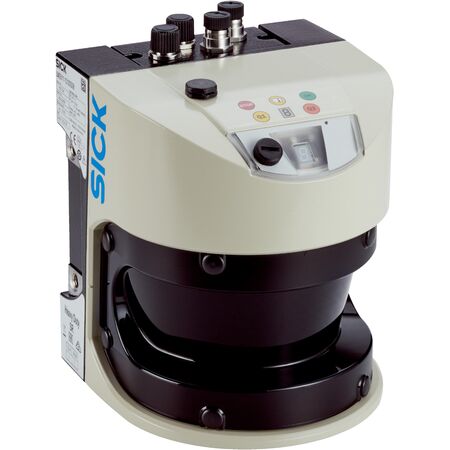

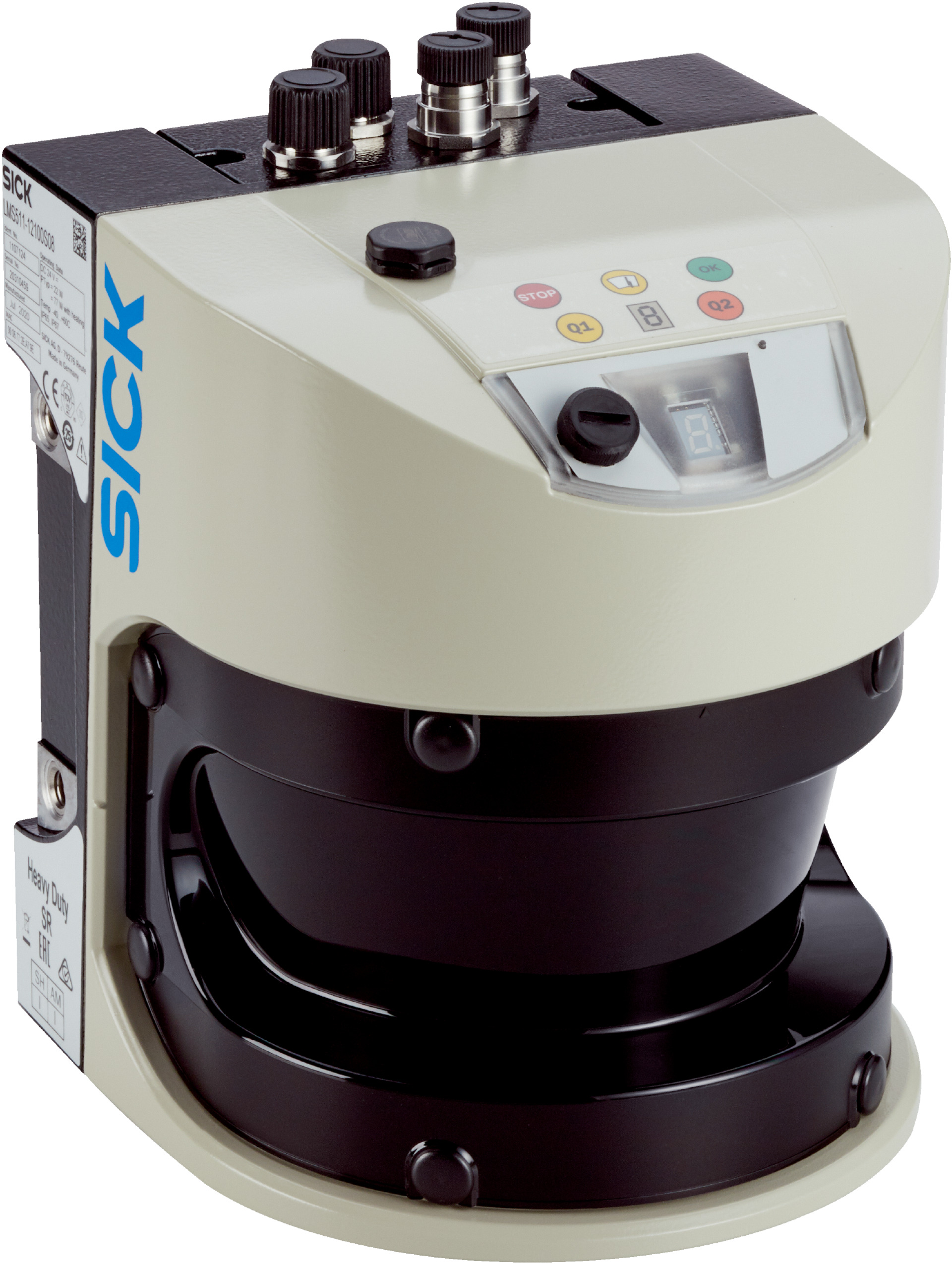

Heavy Duty Extended Range Security LiDAR Sensor | 1m to 130m Range | IP65 & IP67 Rated | by SICK
The Heavy Duty Extended Range Security LiDAR Sensor is designed for outdoor and indoor security monitoring, featuring an impressive working range of 1m to 130m and a wide aperture angle of 190°. With advanced echo filters and robust IP65/IP67 housing, this sensor is perfect for industrial safety and automation applications, ensuring high measurement accuracy and reliability in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Light source: Infrared (905 nm ± 10 nm)
- Laser class: 1 (EN/IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle: 190° horizontal
- Angular resolution: 0.042° interlaced
- Scanning frequency: 25 Hz, 35 Hz, 50 Hz, 75 Hz, 100 Hz
- Working range: 1 m to 130 m
- Measurement accuracy: ±24 mm
- Spot size divergence: 11.9 mrad
- Power consumption: 22 W + 55 W heating (typical)
- Supply voltage: 24 V DC ± 20%
- Enclosure rating: IP65 and IP67
- Housing material: AlSi12 with polycarbonate scratch-resistant window
- Connection type: 4 x M12 round connectors (stainless steel)
- Response time: ≥ 10 ms
- Digital inputs: 4
- Digital outputs: 4 relay function outputs
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +70 °C
- EMC: Industrial environment compliant (IEC 61000-6-3, IEC 61000-6-2)
- Vibration resistance: 10 Hz to 150 Hz, amplitude 0.35 mm to 5 g
- Shock resistance: 15 g, 11 ms, 6 shocks per axis
- Dimensions (H x L x W): 185mm x 160mm x 155mm
- Weight: 3.7 kg
Key Features
- Extended working range from 1 m to 130 m
- Infrared light source (905 nm ± 10 nm) with laser class 1 safety
- Wide aperture angle of 190° horizontal
- High scanning frequency options: 25 Hz to 100 Hz
- Self-heating with integrated heating for harsh environments
- Robust housing with IP65 and IP67 protection ratings
- Multiple communication interfaces including Ethernet, Serial, CAN, and USB
- Advanced echo and environmental filters including fog, particle, and glare filters
- High measurement accuracy with ±24 mm precision
- Supports up to 10 simultaneous evaluation fields
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with industrial sensor systems and electrical safety standards.
Applications
- Outdoor security monitoring
- Indoor security systems
- Industrial safety and automation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient infrared laser technology reduces power consumption
- Durable housing extends product lifespan, reducing waste
- Advanced filtering reduces false alarms, optimizing system efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK LMS531-15100 Heavy Duty Extended Range Security LiDAR Sensor is available for immediate purchase, ideal for advanced security and industrial automation applications.
