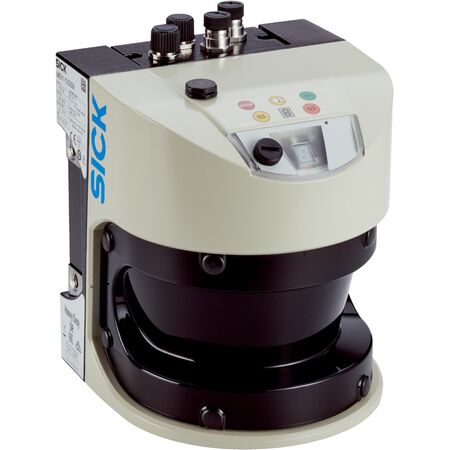

Heavy Duty Laser Scanner | High Resolution Infrared | 190° Aperture Angle | Multiple Scanning Frequencies | by SICK
The Heavy Duty Laser Scanner is designed for high-resolution scanning in both indoor and outdoor environments. With a wide aperture angle of 190° and multiple scanning frequencies ranging from 25 Hz to 100 Hz, it excels in industrial automation and safety monitoring. Built for durability with IP65 and IP67 protection ratings, this scanner ensures reliable performance even in harsh conditions, making it ideal for object detection and measurement tasks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Light source: Infrared (905 nm ± 10 nm)
- Laser class: 1 (EN/IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle: 190° horizontal
- Angular resolution: 0.042° interlaced to 1° selectable
- Scanning frequency: 25 Hz, 35 Hz, 50 Hz, 75 Hz, 100 Hz
- Working range: 0.2 m to 80 m
- Measurement accuracy: ±12 mm
- Spot size at 26 m: 136 mm divergence 4.7 mrad
- Connection type: 4 x M12 round connectors (stainless steel)
- Supply voltage: 24 V DC ± 20%
- Power consumption: 22 W plus 55 W heating typical
- Housing material: AlSi12 with polycarbonate scratch-resistant window
- Enclosure rating: IP65 and IP67
- Protection class: III (IEC 61140:2016-11)
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +70 °C
- Weight: 3.7 kg
- MTBF: > 100 years
- Interfaces: Ethernet (TCP/IP, UDP/IP), Serial (RS-232, RS-422), CAN, USB
- Digital inputs/outputs: 4 inputs, 6 outputs
- Optical indicators: 5 LEDs with 7-segment display
- Filters: Echo, fog, particle, average, glare
- Dimensions (H x L x W): 185mm x 160mm x 155mm
- Weight: 3.7 kg
Key Features
- High resolution infrared laser source (905 nm ± 10 nm)
- Wide aperture angle of 190° horizontal
- Multiple scanning frequencies: 25 Hz to 100 Hz
- Self-heating with integrated heating for cold environments
- Robust housing with IP65 and IP67 protection ratings
- Multiple interfaces including Ethernet, Serial, CAN, and USB
- Advanced echo and environmental filters including fog and glare filters
- High measurement accuracy with ±12 mm precision
- Supports up to 10 simultaneous field evaluations
Professional Installation Requirements
- Installation by qualified professionals is recommended to ensure proper setup and compliance with safety standards.
Applications
- Outdoor and indoor environments requiring high-resolution laser scanning
- Industrial automation and safety monitoring
- Object detection and measurement in harsh conditions
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Energy-efficient operation with low power consumption
- Advanced filtering reduces false readings, improving operational efficiency
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The SICK LMS511-22100S08 Heavy Duty Laser Scanner is available for immediate purchase, ideal for industrial and safety applications requiring high precision and durability.
