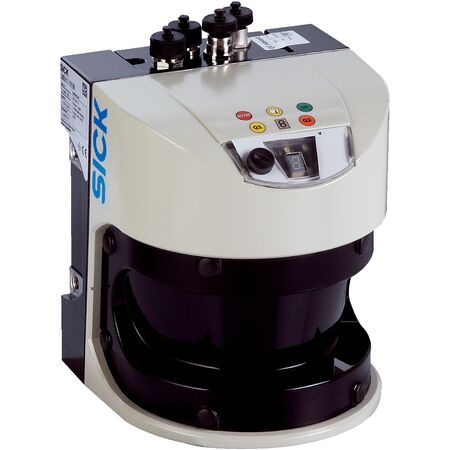

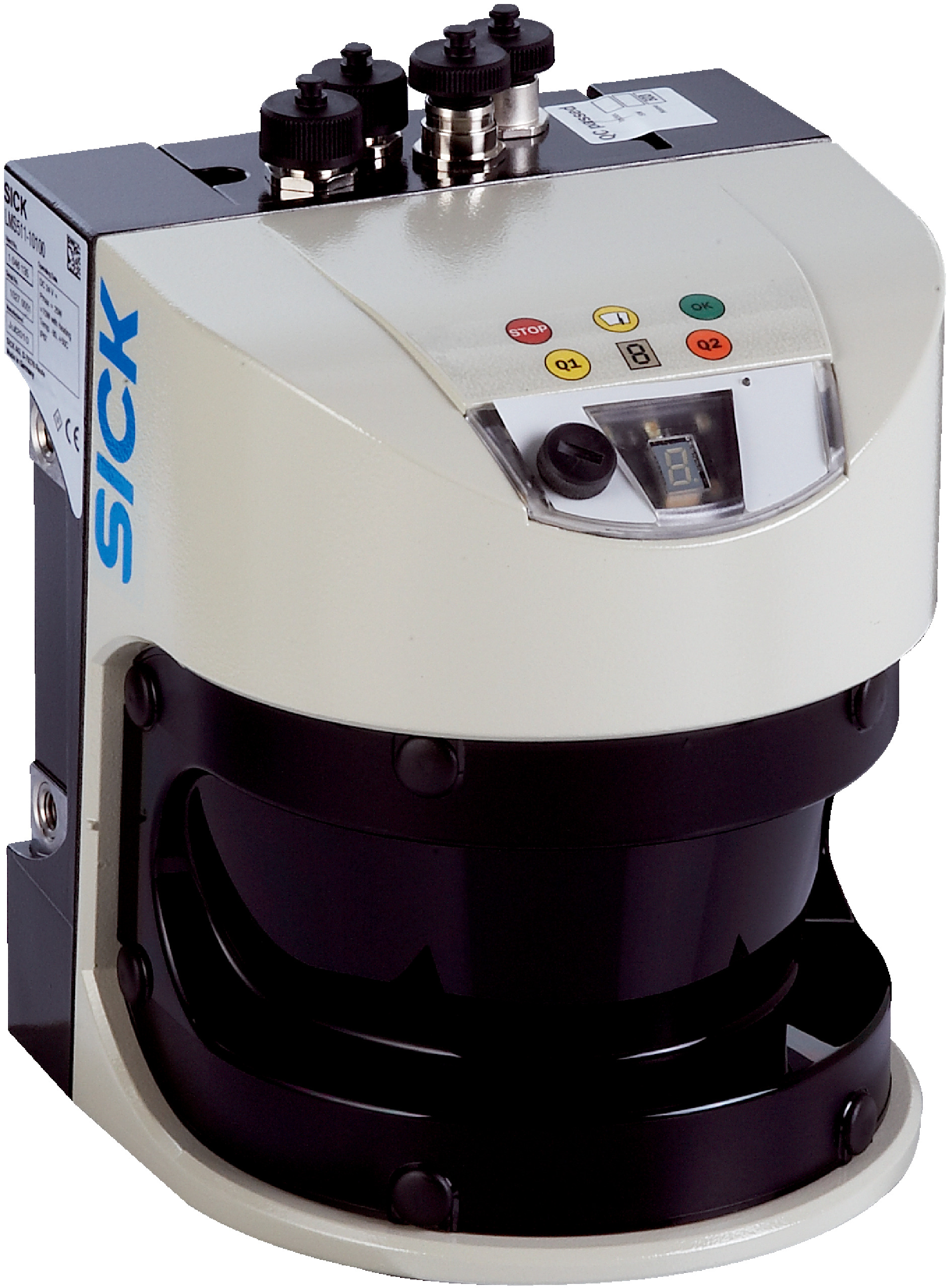

Heavy Duty Laser Scanner | Infrared Light Source | IP65 & IP67 Rated | by SICK
The Heavy Duty Laser Scanner is designed for both indoor and outdoor environments, featuring an infrared light source and a wide aperture angle of 190°. With multiple scanning frequencies and high measurement accuracy of ±24 mm, it's perfect for industrial automation and safety monitoring. Built to withstand harsh conditions, this robust scanner ensures reliable performance in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Light source: Infrared (905 nm, ± 10 nm)
- Laser class: 1 (EN/IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle: 190° horizontal
- Scanning frequency: 25 Hz, 35 Hz, 50 Hz, 75 Hz, 100 Hz
- Angular resolution: 0.042° interlaced
- Working range: 0.2 m to 80 m
- Scanning range at 10% remission factor: 40 m
- Measurement accuracy: ± 24 mm
- Spot size divergence: 11.9 mrad
- Connection type: 4 x M12 round connectors (stainless steel)
- Supply voltage: 24 V DC, ± 20%
- Power consumption: 22 W plus 55 W heating (typical)
- Housing material: AlSi12
- Window material: Polycarbonate with scratch-resistant coating
- Enclosure rating: IP65 and IP67
- Protection class: III (IEC 61140:2016-11)
- Response time: ≥ 10 ms
- Number of field sets: 10
- Simultaneous evaluation cases: 10
- Filters: Echo, fog, particle, average, glare
- Interfaces: Ethernet (TCP/IP, UDP/IP), Serial (RS-232, RS-422), CAN, USB
- Ambient operating temperature: –40 °C to +60 °C
- Storage temperature: –40 °C to +70 °C
- Impact resistance: IK05, IK06, IK07
- Dimensions (H x L x W): 185mm x 160mm x 155mm
- Weight: 3.7 kg
Key Features
- Heavy-duty variant suitable for harsh environments
- Infrared light source (905 nm, ± 10 nm)
- Laser class 1 compliant with EN/IEC 60825-1 standards
- Wide aperture angle of 190° horizontal
- Multiple scanning frequencies: 25 Hz to 100 Hz
- Self-heating with integrated heating for cold environments
- High measurement accuracy with ±24 mm precision
- Multiple echo evaluation (up to 5 echoes)
- Robust housing with IP65 and IP67 protection ratings
- Multiple communication interfaces including Ethernet, Serial, CAN, and USB
- Integrated filters for echo, fog, particle, average, and glare
- Operating temperature range from –40 °C to +60 °C
- Shock and vibration resistant with IK05 to IK07 impact rating
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
- Outdoor and indoor environment scanning
- Industrial automation and safety monitoring
- Object detection and measurement
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Energy-efficient operation with 22 W power consumption plus heating
- Supports industrial automation which can optimize resource use and reduce emissions
Warranty Information
Warranty details available upon request from manufacturer or authorized distributor.
Available Now
The SICK LMS511-12100 Heavy Duty Laser Scanner is available for immediate purchase, ideal for industrial and safety applications in both indoor and outdoor environments.
