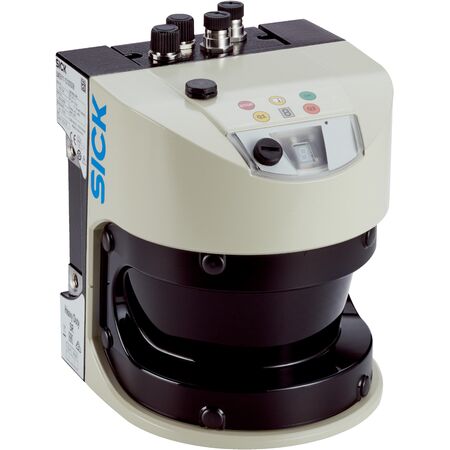

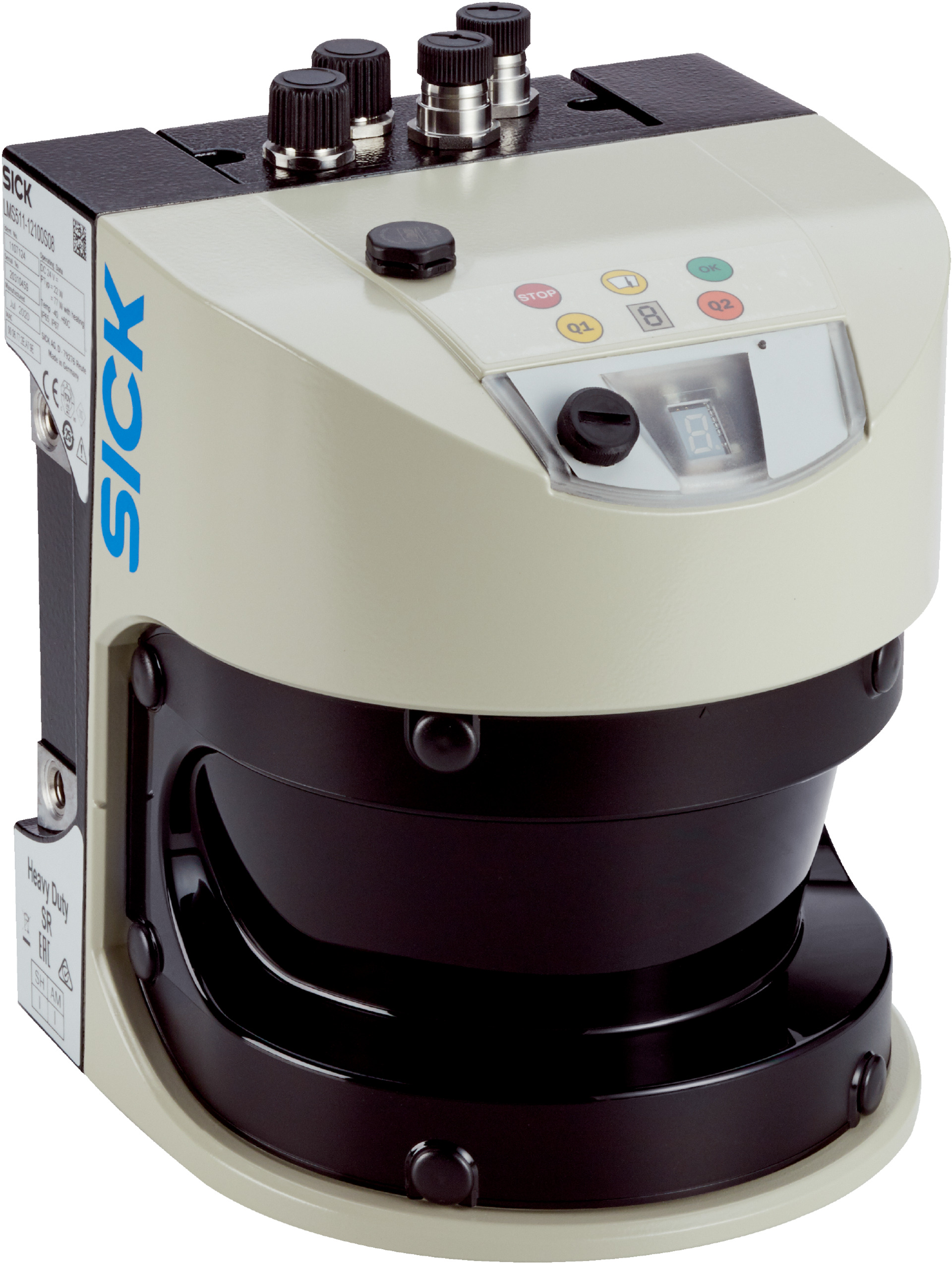

Heavy Duty Laser Scanner | Infrared Light Source | IP65 & IP67 Rated | by SICK
The Heavy Duty Laser Scanner is designed for both outdoor and indoor industrial environments, featuring an infrared light source and a wide aperture angle of 190°. With multiple scanning frequencies and high measurement accuracy of ±24 mm, it's perfect for object detection and measurement tasks. Built to withstand harsh conditions, this robust scanner ensures reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Light source: Infrared (905 nm, ± 10 nm)
- Laser class: 1 (EN/IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle: 190° horizontal
- Scanning frequency: 25 Hz, 35 Hz, 50 Hz, 75 Hz, 100 Hz
- Angular resolution: 0.042° interlaced to 1°
- Working range: 0.2 m to 80 m
- Measurement accuracy: ± 24 mm
- Spot size divergence: 11.9 mrad
- Connection type: 4 x M12 round connectors (stainless steel)
- Supply voltage: 24 V DC, ± 20%
- Power consumption: 22 W, + 55 W heating (typical)
- Housing material: AlSi12
- Window material: Polycarbonate with scratch-resistant coating
- Enclosure rating: IP65 and IP67
- Protection class: III (IEC 61140:2016-11)
- Response time: ≥ 10 ms
- Number of field sets: 10
- Simultaneous evaluation cases: 10
- Filters: Echo, fog, particle, average, glare
- Interfaces: Ethernet (TCP/IP, UDP/IP), Serial (RS-232, RS-422), CAN, USB
- Ambient operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +70 °C
- Impact resistance: IK05, IK06, IK07
- Dimensions (H x L x W): 185mm x 160mm x 155mm
- Weight: 3.7 kg
Key Features
- Heavy-duty variant suitable for harsh environments
- Infrared light source (905 nm, ± 10 nm)
- Laser class 1 compliant with EN/IEC 60825-1 standards
- Wide aperture angle of 190° horizontal
- Multiple scanning frequencies: 25 Hz to 100 Hz
- Self-heating with integrated heating for cold conditions
- High measurement accuracy with ±24 mm precision
- Multiple echo evaluation (up to 5 echoes)
- Robust housing with IP65 and IP67 protection ratings
- Multiple interface options including Ethernet, Serial, CAN, and USB
- Integrated filters for echo, fog, particle, average, and glare
- Operating temperature range from -40 °C to +60 °C
- Shock and vibration resistant with IK05 to IK07 impact ratings
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with industrial laser scanning equipment and electrical safety standards.
Applications
- Outdoor and indoor industrial environments
- Object detection and measurement
- Field evaluation and measurement data output
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3123 – Industrial Plugs and Socket-Outlets
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption with efficient heating system
- Complies with electromagnetic compatibility standards to reduce interference
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The SICK LMS511-12100S08 Heavy Duty Laser Scanner is available for immediate purchase, ideal for industrial outdoor and indoor applications requiring precise and reliable laser scanning.
