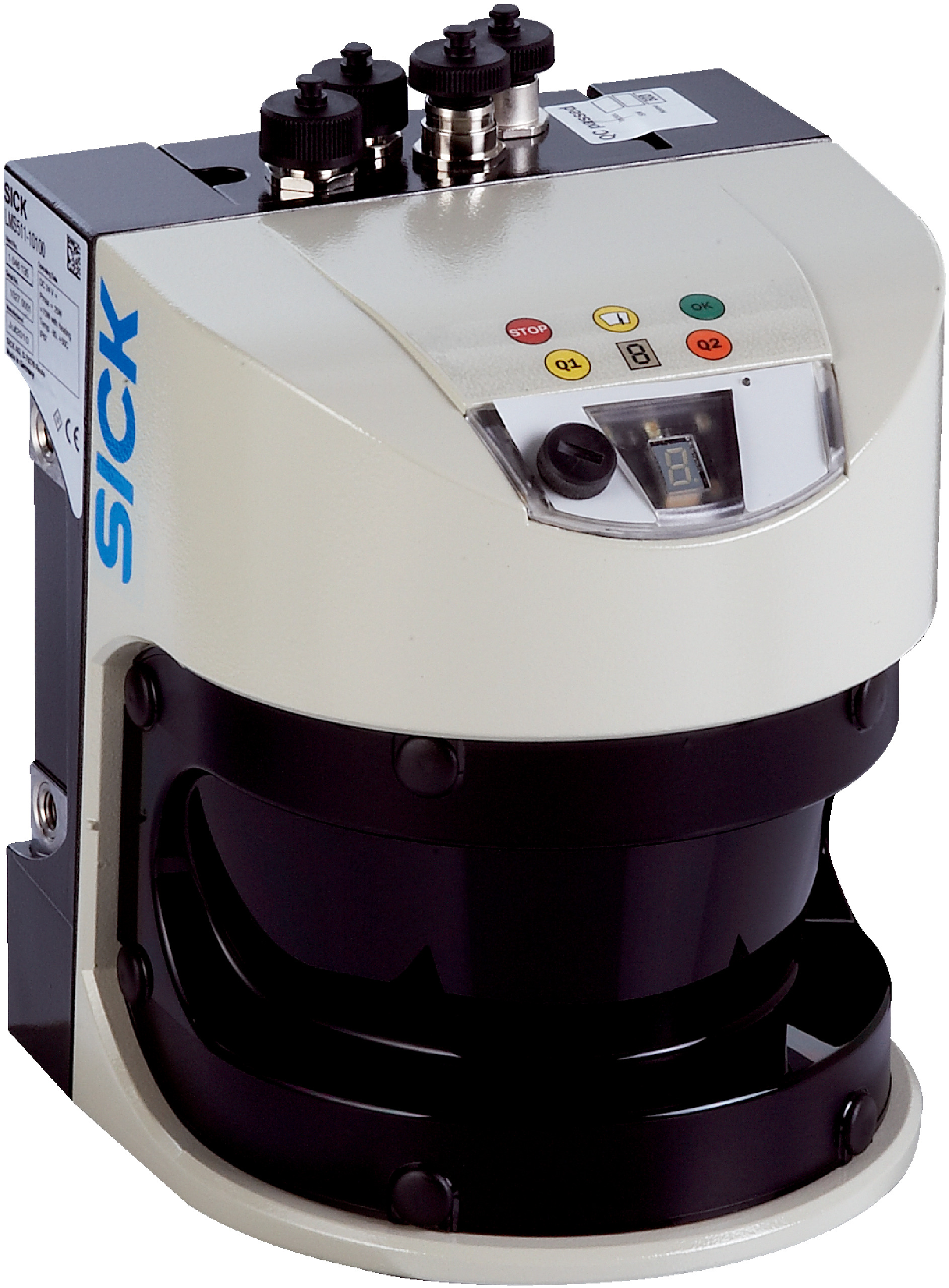

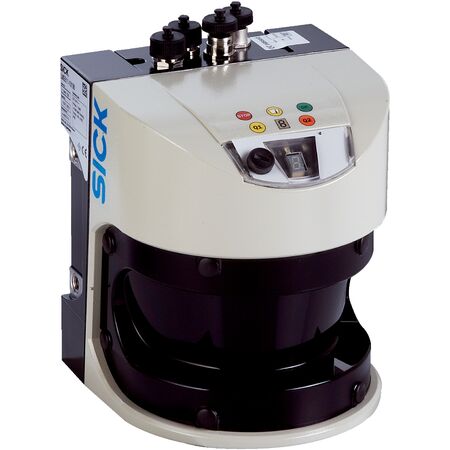

Heavy Duty Laser Scanner LMS511-22100 | High Resolution | IP65 & IP67 Protection | by SICK
The Heavy Duty Laser Scanner LMS511-22100 offers high-resolution infrared scanning with a 190° horizontal aperture angle, making it ideal for both indoor and outdoor industrial applications. Built for rugged environments, it features multiple scanning frequencies and robust housing with IP65 and IP67 ratings, ensuring reliable performance in harsh conditions. Perfect for object detection and measurement, this scanner is designed for professionals seeking precision and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Light source: Infrared (905 nm, ±10 nm)
- Laser class: 1 (EN/IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Horizontal aperture angle: 190°
- Angular resolution: 0.042° interlaced to 1° selectable
- Scanning frequency: 25 Hz, 35 Hz, 50 Hz, 75 Hz, 100 Hz
- Working range: 0.2 m to 80 m
- Scanning range at 10% remission factor: 26 m
- Measurement accuracy: ±12 mm
- Spot size divergence: 4.7 mrad
- Connection type: 4 x M12 round connectors (stainless steel)
- Supply voltage: 24 V DC, ±20%
- Power consumption: 22 W typical, 55 W with heating
- Housing material: AlSi12 with polycarbonate scratch-resistant window
- Enclosure rating: IP65 and IP67
- Protection class: III (IEC 61140:2016-11)
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +70 °C
- Electromagnetic compatibility: Industrial environment standards IEC 61000-6-3 and IEC 61000-6-2
- Vibration resistance: 10 Hz to 150 Hz, amplitude 0.35 mm to 5 g
- Shock resistance: 15 g, 11 ms shocks
- Impact resistance: IK05, IK06, IK07 (DIN EN 50102:09-1997)
- Response time: ≥ 10 ms
- Number of field sets: 10
- Simultaneous evaluation cases: 10
- Digital inputs: 4 (digital, encoder HTL, synchronization)
- Digital outputs: 6 (digital)
- Optical indicators: 5 LEDs with 7-segment display
- Parameter storage: Integrated cloning parameter memory
- Dimensions (H x L x W): 185mm x 160mm x 155mm
- Weight: 3.7 kg
Key Features
- High resolution infrared laser scanning with 905 nm wavelength
- Heavy-duty variant suitable for rugged environments
- Wide horizontal aperture angle of 190°
- Multiple scanning frequencies: 25 Hz to 100 Hz
- Self-heating with integrated heating for cold environments
- Robust housing with IP65 and IP67 protection ratings
- Multiple communication interfaces including Ethernet, Serial, CAN, and USB
- Advanced filtering options including echo, fog, particle, average, and glare filters
- High measurement accuracy with ±12 mm precision
- Supports up to 5 evaluated echoes and 10 simultaneous evaluation cases
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with industrial laser safety and electrical standards to ensure proper setup and compliance.
Applications
- Outdoor and indoor environment scanning
- Industrial automation and safety monitoring
- Object detection and measurement in harsh conditions
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Energy-efficient operation with low power consumption
- Supports precise measurement reducing resource waste in industrial processes
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The SICK LMS511-22100 Heavy Duty Laser Scanner is available for immediate purchase, ideal for industrial and outdoor/indoor scanning applications requiring high resolution and robust performance.
