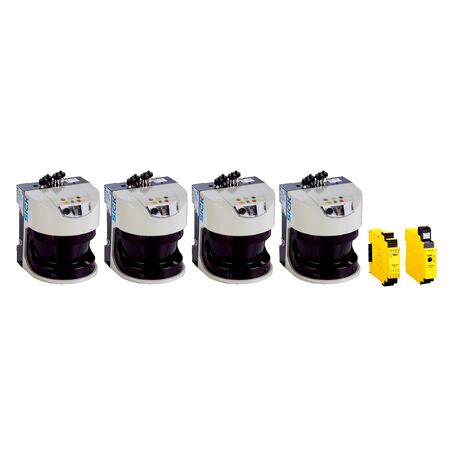

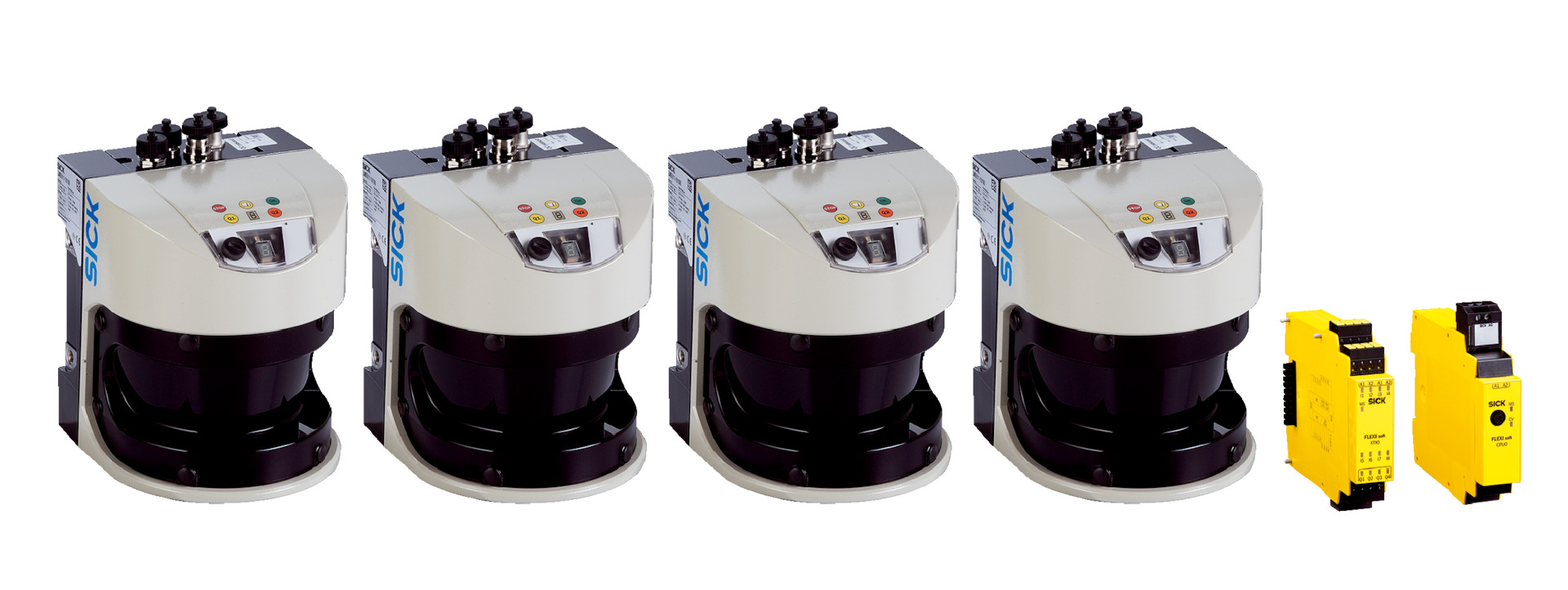

Heavy-Duty LiDAR Object Detection System | 4 Sensors | 190° Aperture Angle | 40m Range | by SICK
The Heavy-Duty LiDAR Object Detection System is designed for robust industrial applications, featuring four LMS511-12100S04 sensors with a 190° aperture angle and a maximum range of 40 meters. Ideal for industrial automation and safety monitoring, this system ensures reliable performance in harsh environments with an IP65/IP67 enclosure rating and a quick response time of 330 ms.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor Model: LMS511-12100S04
- Number of Sensors: 4
- Aperture Angle: 190°
- Max Range (10% reflectivity): 40 m
- Supply Voltage: 24 V DC
- Power Consumption: 22 W per LMS511 sensor, 6.9 W for Flexi Soft with 2x I/O module
- Enclosure Rating: IP65/IP67 for sensor, IP20 for control
- Response Time: 330 ms
- Safety Inputs: 16
- Safe Outputs: 8
- Configuration Interfaces: Ethernet (sensor), USB (control)
- Operating Temperature: Sensor -40°C to +60°C, Control -25°C to +55°C
- Storage Temperature: Sensor -40°C to +70°C, Control -25°C to +70°C
- Ambient Light Immunity: 70,000 lx
- Vibration Resistance: IEC 60068-2-6:2007-12
- Shock Resistance: IEC 60068-2-27:2008-03
- Dimensions (H x L x W): 155mm x 185mm x 160mm
- Weight: 3.7 kg
Key Features
- Four LMS511-12100S04 sensors with 190° aperture angle
- Maximum range of 40 meters with 10% reflectivity
- Heavy-Duty version designed for robust industrial use
- IP65/IP67 rated sensor enclosure for harsh environments
- Response time of 330 ms
- 16 safety inputs and 8 safe outputs
- Ethernet and USB configuration interfaces
- Alarm outputs for warning field intrusion, stop field intrusion, system test error, and contamination warning
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with industrial sensor systems and electrical safety standards.
Applications
- Industrial automation and robotics
- Object detection and monitoring in manufacturing
- Safety monitoring in non-human protection environments
- Logistics and warehouse automation
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables efficient automation reducing energy consumption in industrial processes
- Robust design reduces need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK AOS504 RMG Heavy-Duty LiDAR Object Detection System is available for immediate purchase, ideal for industrial automation and object detection applications.
