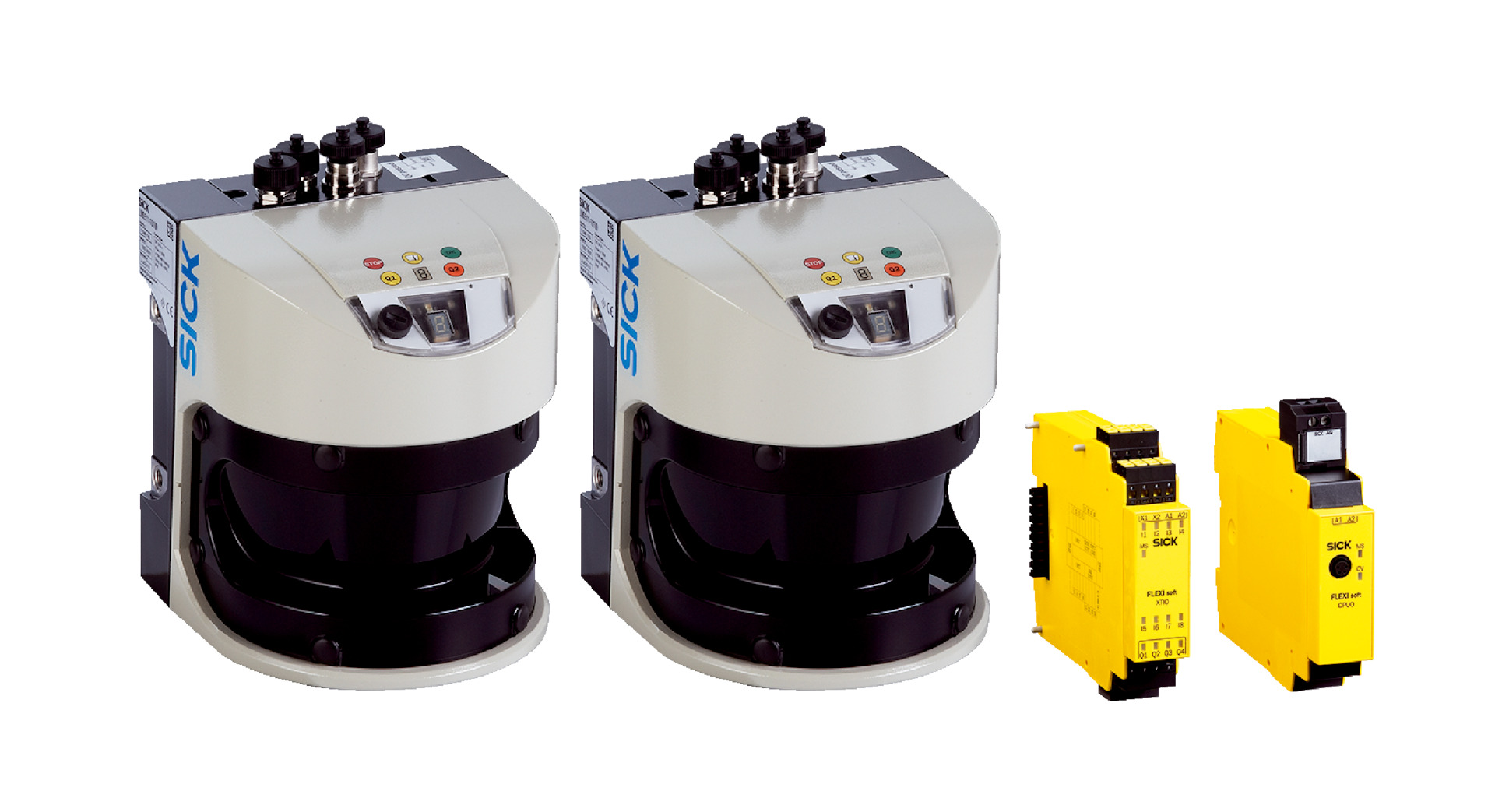

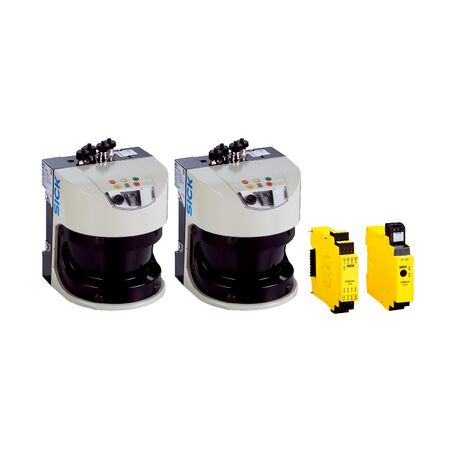

Heavy-Duty LiDAR Sensor System AOS502 STS | Dual LMS511 Sensors | 190° Aperture Angle | 40m Detection Range | by SICK
The Heavy-Duty LiDAR Sensor System AOS502 STS features dual LMS511 sensors with a 190° aperture angle, providing a maximum detection range of 40 meters. Designed for industrial automation and robust environments, this system ensures fast response times and high ambient light immunity, making it ideal for precise object detection and monitoring tasks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor model: LMS511-12100S04
- Number of sensors: 2
- Aperture angle: 190°
- Max range with 10% reflectivity: 40 m
- Supply voltage: 24 V DC
- Power consumption: 22 W per LMS511 sensor, 6.9 W for Flexi Soft with 2 I/O modules
- Enclosure rating: IP65/IP67 for sensor, IP20 for control
- Response time: 330 ms
- Number of safety inputs: 16
- Number of safe outputs: 8
- Configuration interfaces: Ethernet (sensor), USB (control)
- Operating temperature: -40°C to +60°C (sensor), -25°C to +55°C (control)
- Storage temperature: -40°C to +70°C (sensor), -25°C to +70°C (control)
- Ambient light immunity: 70,000 lx
- Vibration resistance: IEC 60068-2-6:2007-12
- Shock resistance: IEC 60068-2-27:2008-03
- Dimensions (H x L x W): 185mm x 155mm x 160mm
- Weight: 3.7 kg
Key Features
- Dual LMS511-12100S04 sensors with 190° aperture angle
- Maximum detection range of 40 meters at 10% reflectivity
- Heavy-Duty version with IP65/IP67 sensor enclosure rating
- Fast response time of 330 ms
- 16 safety inputs and 8 safe outputs
- Ethernet and USB configuration interfaces
- Robust ambient operating temperature range from -40°C to +60°C
- High ambient light immunity up to 70,000 lx
- Vibration and shock resistance compliant with IEC 60068 standards
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper setup and configuration of sensors and control modules.
Applications
- Industrial automation and object detection
- Heavy-duty environments requiring robust sensor solutions
- Non-safety related monitoring and detection tasks
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables precise object detection reducing unnecessary machine operation and energy waste
- Robust design minimizes replacement frequency and electronic waste
Warranty Information
Warranty details available upon request from SICK; typically includes coverage against manufacturing defects.
Available Now
The SICK AOS502 STS Heavy-Duty LiDAR Object Detection System is available for immediate purchase, ideal for industrial and heavy-duty object detection applications.
