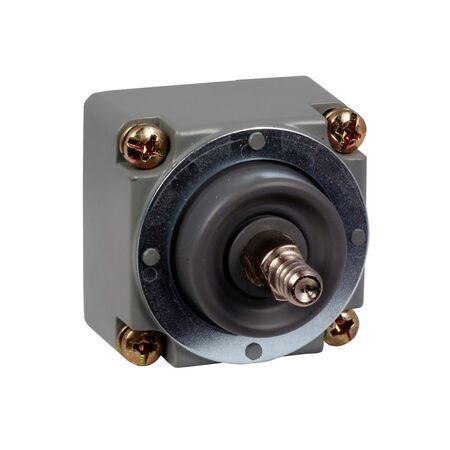

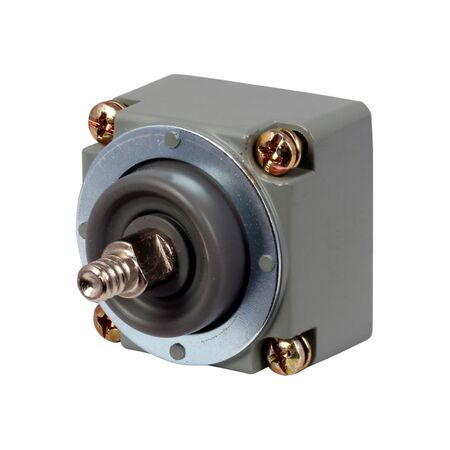

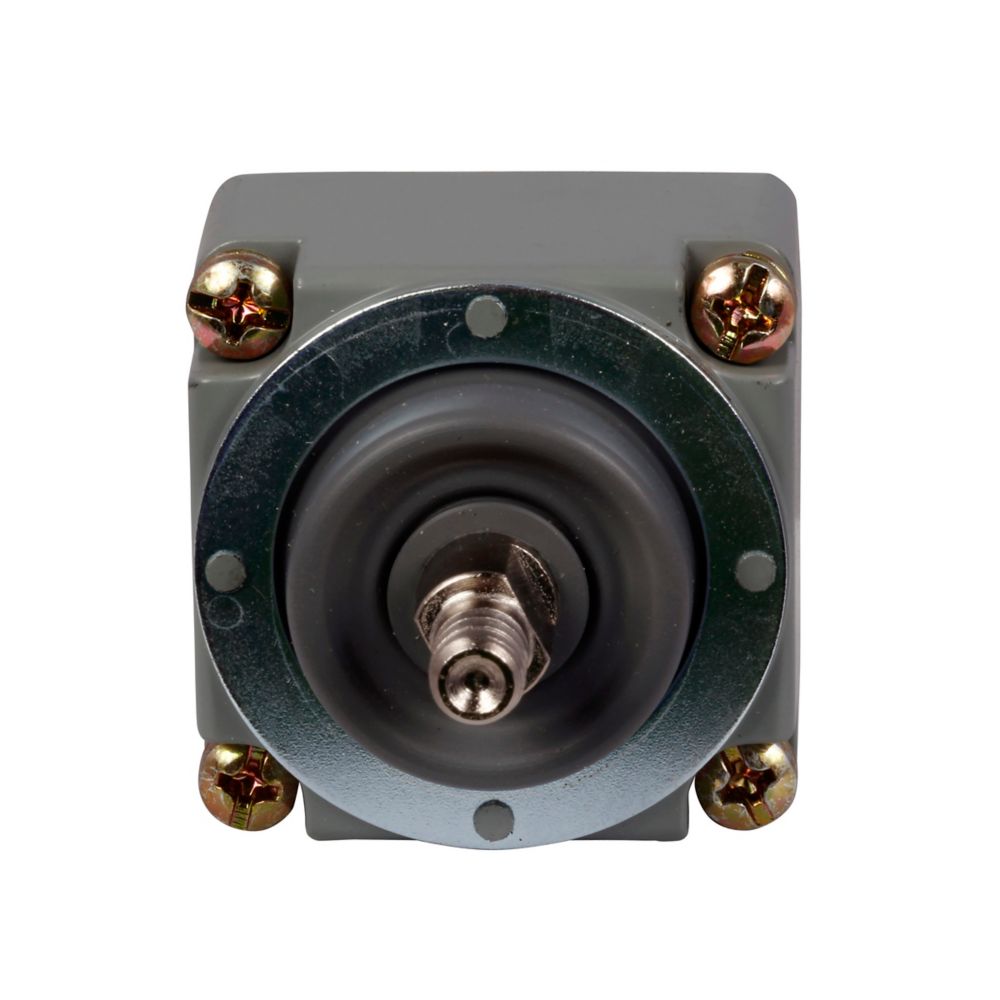

Heavy Duty Limit Switch | Wobble Head Actuator | NEMA 1-6 & IP67 Rated | by Eaton
The Heavy Duty Limit Switch features a robust wobble head actuator with spring return, designed for reliable operation in industrial machinery control systems. With a wide operating temperature range of -10°C to 121°C and NEMA 1-6 & IP67 environmental ratings, this switch ensures durability and performance in demanding applications. Ideal for conveyor systems and automated manufacturing equipment, it is UL Listed and RoHS compliant for safety and environmental standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heavy Duty Limit Switch | Wobble Head Actuator | NEMA 1-6 & IP67 Rated | by Eaton
Brand: Eaton
SKU: E50DW2
Alternatively Known As: E50 NEMA Limit Switch, Heavy Duty Limit Switch, Wobble Head Limit Switch, Industrial Limit Switch E50DW2
Technical Specifications
- Operating Temperature: -10°C to 121°C (14°F to 250°F)
- Enclosure Material: Die cast zinc
- Actuator Type: Wobble head with spring return
- Environmental Rating: NEMA 1, 3, 3S, 4, 4X, 6, 6P, 13, IP67
- Terminal Type: Screw terminal
- Certifications: UL Listed, UL Recognized, CSA Certified, CE Marked
- Dimensions (H x L x W): 45mm x 47mm x 39mm
- Weight: 0.1 kg
Key Features
- Heavy duty high strength steel construction
- Wobble head actuator with spring return
- Wide operating temperature range from -10°C to 121°C (14°F to 250°F)
- Screw terminal connections for secure wiring
- Environmental ratings: NEMA 1, 3, 3S, 4, 4X, 6, 6P, 13 and IP67
- Die cast zinc enclosure for durability
- Certified to UL, CSA standards and CE marked
- RoHS compliant
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial control equipment to ensure compliance with safety standards.
Applications
- Industrial machinery control systems
- Conveyor systems
- Automated manufacturing equipment
- Safety interlock systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS compliant design reduces hazardous substances in manufacturing and disposal.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Eaton E50DW2 Heavy Duty NEMA Limit Switch is available for immediate purchase, ideal for industrial and manufacturing control applications.
