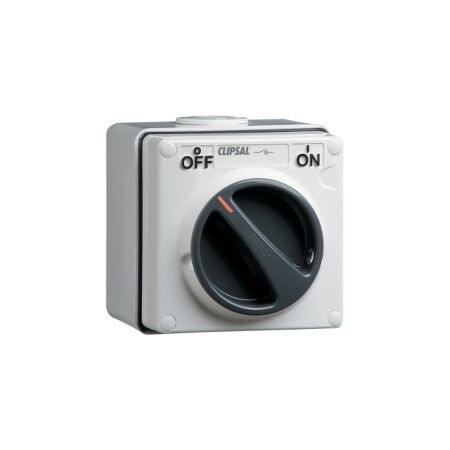

Heavy Duty Surface Switch 1 Gang | 250VAC 10A | IP66 Rated | Grey by Clipsal
Heavy duty surface switch with 250VAC and 10A rating—ideal for industrial and commercial applications. Built for durability, with IP66 protection and rotary knob control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Clipsal - 56 Series, Surface Switch, 1 Gang, 250VAC, 10A, Heavy Duty - Grey
Brand: Clipsal
SKU: 56SW110HD-GY
Alternatively Known As: Heavy Duty Surface Switch, Clipsal 56 Switch, Rotary Control Switch
Technical Specifications
- Rated operational voltage: 250 V AC 50 Hz
- Rated current: 10 A
- Material: Polycarbonate (PC)
- Number of poles: 1
- Breaking capacity: 10 kA
- Rated impulse withstand voltage: 4 kV
- Tightening torque: 0.8 N.m
- Ambient air temperature for operation: -25...75 °C
- Dimensions (H x L x W): 107mm x 108mm x 101mm
- Weight: 0.54 kg
Key Features
- IP66 rated for protection against dust and water.
- Designed for surface mounting with a rotary knob control.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Heavy-duty applications in utility and small commercial settings.
Standards & Compliance
- Complies with AS/NZS 3133 and AS 60529 for safety and performance.
Environmental Benefits
- Compliant with RoHS directives and designed with environmentally friendly materials.
Warranty Information
Standard warranty applies.
Available Now
The Clipsal 56 Series Heavy Duty Surface Switch is available now for immediate purchase. Ideal for industrial and commercial applications.
