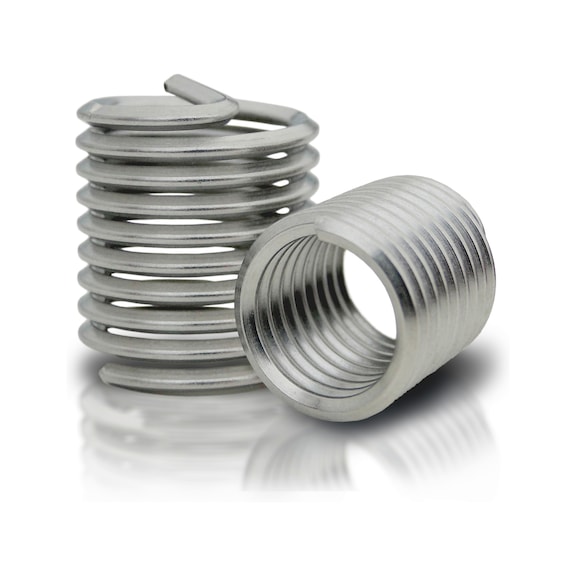

Helical Insert W.TEC® INSERT COIL | M6 Free Running | Stainless Steel A2 | 10 PCS | by Wurth
Helical insert W.TEC® INSERT COIL is designed for effective thread repair and reinforcement, made from A2 stainless steel for enhanced corrosion resistance. Ideal for repairing damaged internal threads in low-strength metals and plastics, this free-running insert ensures reliable fastening and optimal force distribution, making it perfect for mechanical assemblies.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Helical Insert W.TEC® INSERT COIL | M6 Free Running | Stainless Steel A2 | 10 PCS | by Wurth
Brand: Wurth
SKU: 4627615
Alternatively Known As: Thread Repair Insert, Threaded Coil Insert, Helical Thread Insert, Threaded Coil, Thread Repair Coil
Technical Specifications
- Material: Stainless steel A2
- Surface: Plain
- Design: Free running
- Thread type x nominal diameter: M6
- Length built-in state (l1): 15 mm
- Outer diameter (d1): 7.3 mm
- Thread form: Standard metric thread
- Pitch: 1 mm
- Core hole diameter: 6.3 mm
- Minimum core hole depth: 19.5 mm
- Required thread depth at stud hole: 18.5 mm
- Dimensions (H x L x W): 15mm x 15mm x 7.3mm
- Weight: 0.02 kg
Key Features
- Made of A2 stainless steel for increased corrosion resistance
- Free running, true to gauge thread for reliable fastening
- Optimal force distribution and flexibility compensates for pitch and angle errors
- Minimised thread friction torque and torsional stress
- Space and weight minimisation with fewer required connection points
- Reinforces threads to minimise repair costs
- Tolerance position of ISO thread corresponds to 6H after installation
Professional Installation Requirements
- Installation requires proper tools and knowledge of thread repair techniques; professional installation by a qualified technician is recommended for optimal performance.
Applications
- Repair and reinforcement of damaged or worn internal threads in low-strength metal materials
- Thread reinforcement in plastics
- Heavy-duty female thread production in mechanical assemblies
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Extends the life of components by repairing worn threads, reducing waste
- Made from corrosion-resistant stainless steel for long-lasting use
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth Helical Insert W.TEC® INSERT COIL M6 Free Running 10 PCS is available for immediate purchase, ideal for mechanical repair and thread reinforcement applications.
