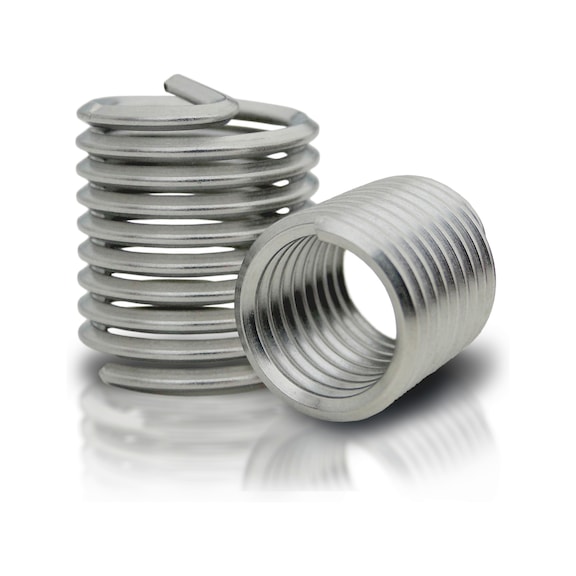

Helical Insert W.TEC® INSERT COIL | M5 Thread | Free Running Design | 10 PCS | by Wurth
Helical insert W.TEC® INSERT COIL is designed for reinforcing female threads in low-strength metals and plastics. Made from durable A2 stainless steel, it offers optimal force distribution and flexibility, minimizing thread friction and torsional stress. Ideal for mechanical repair and heavy-duty thread production, this 10 PCS set ensures long-lasting performance and reduced repair costs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Helical Insert W.TEC® INSERT COIL | M5 Thread | Free Running Design | 10 PCS | by Wurth
Brand: Wurth
SKU: 46275125
Alternatively Known As: Thread Repair Insert, Threaded Coil Insert, Helical Thread Insert, Wire Thread Insert, Threaded Coil
Technical Specifications
- Material: Stainless steel A2
- Surface: Plain
- Design: Free running
- Thread type x nominal diameter: M5
- Length built-in state (l1): 12.5 mm
- Outer diameter (d1): 6 mm
- Thread form: Standard metric thread
- Pitch: 0.8 mm
- Core hole diameter: 5.2 mm
- Minimum core hole depth: 16.1 mm
- Required thread depth at stud hole: 15.3 mm
- Dimensions (H x L x W): 12.5mm x 12.5mm x 6mm
- Weight: 0.01 kg
Key Features
- Produces lasting, heavy-duty female threads
- Free running, true to gauge thread
- Made of A2 stainless steel for increased corrosion resistance
- Optimal force distribution and flexibility compensates for pitch and angle errors
- Minimised thread friction torque and torsional stress
- Space and weight minimisation with fewer connection points
- Reinforces threads to minimise repair costs
Professional Installation Requirements
- Installation requires proper tools and knowledge of thread repair techniques; professional installation recommended for critical applications.
Applications
- Reinforcing female threads in low-strength metal materials
- Thread repair in plastics and metals
- Heavy-duty thread production in mechanical assemblies
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Reinforces existing threads reducing the need for full part replacement
- Made from corrosion-resistant stainless steel for long service life
- Minimises material waste by extending component lifespan
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth Helical Insert W.TEC® INSERT COIL M5 Thread 10 PCS is available for immediate purchase, ideal for mechanical repair and reinforcement applications.
