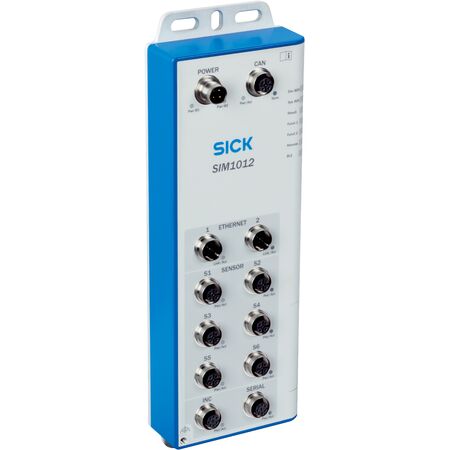

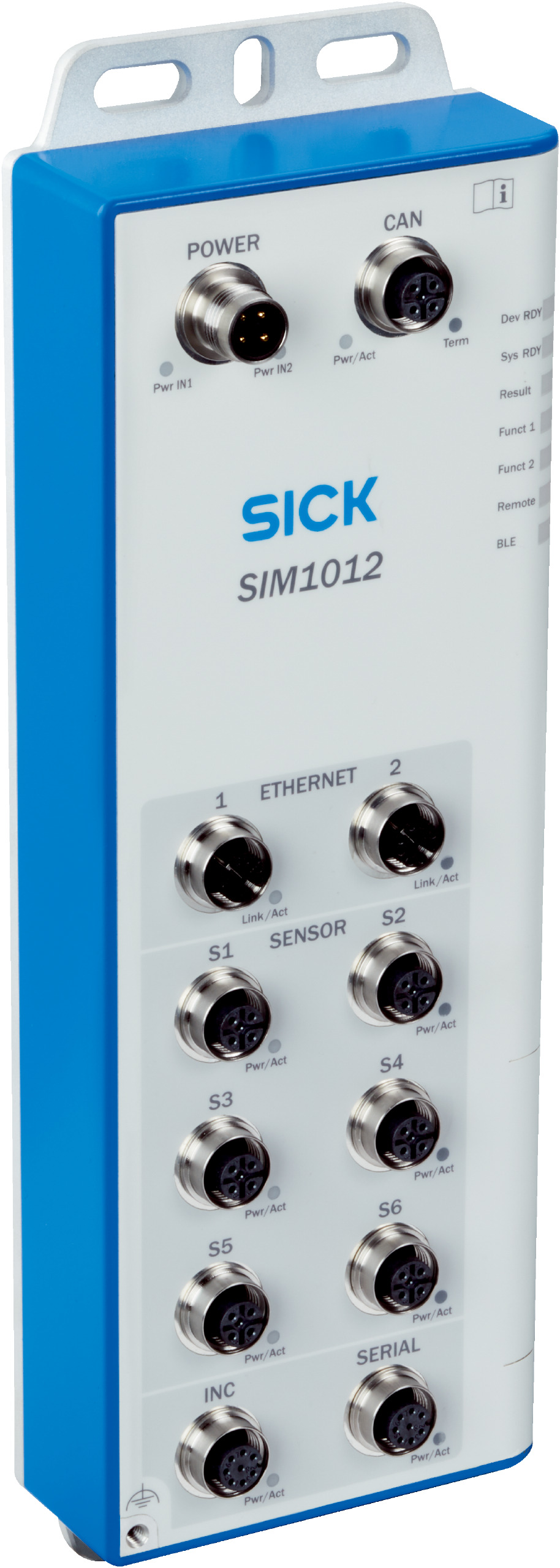

HERMES SMEMA Signal Converter | Dual-core ARM Cortex-A9 | IP65 Rated Aluminum | by SICK
The HERMES SMEMA Signal Converter is designed for seamless integration in industrial automation, converting SMEMA N+1 and N-1 signals to IPC-Hermes messages. With a powerful dual-core ARM Cortex-A9 CPU and IP65 rated aluminum housing, it ensures reliable performance in demanding environments, making it ideal for applications like barcode scanning and RFID systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Processor: Dual-core ARM Cortex-A9 CPU with NEON accelerator
- Memory: 1 GB RAM, 256 MB flash memory (30 MB available for applications)
- Power supply: 24 V DC ±10%, power consumption ≤ 15 W without connected sensors
- Output current: Serial ≤ 1 A, Incremental ≤ 0.5 A, CAN ≤ 3.2 A, S1-S6 ≤ 100 mA
- Connections: Power (M12, 4-pin male, T-coded), Incremental (6x M12, 8-pin female, A-coded), Serial (2x M12, 5-pin female, A-coded), CAN (M12, 8-pin female, X-coded)
- Interfaces: Ethernet (TCP/IP, FTP, OPC UA, MQTT), IO-Link V1.1, RS-422, RS-485, USB 2.0
- Enclosure rating: IP65
- Housing material: Aluminum
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- EMC compliance: EN 61000-6-2:2005-08 / EN 61000-6-4:2007+A1:2011
- Shock and vibration resistance: EN 60068-2-27:2009-05, EN 60068-2-6:2008-02
- Dimensions (H x L x W): 266mm x 87mm x 46mm
- Weight: 0.9 kg
Key Features
- Programmable and configurable device for signal conversion
- Converts SMEMA N+1 and N-1 signals to IPC-Hermes upstream and downstream messages
- Dual-core ARM Cortex-A9 CPU with NEON accelerator
- 1 GB RAM and 256 MB flash memory with 30 MB available for applications
- FPGA for I/O handling
- Supports Ethernet (TCP/IP, FTP, OPC UA, MQTT), IO-Link, RS-422, RS-485, USB 2.0 interfaces
- IP65 rated aluminum housing
- Supports SICK AppStudio and SICK AppSpace programming environments
- 7 optical indicators for status and diagnostics
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial automation systems and electrical safety standards.
Applications
- Integration with image-based code readers
- Fixed mount barcode scanners
- RFID read/write devices
- Photoelectric sensors
- Industrial automation requiring SMEMA to IPC-Hermes signal conversion
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables efficient communication between industrial devices reducing downtime and waste
- Supports energy-efficient operation with low power consumption (≤ 15 W without connected sensors)
- Durable IP65 rated housing extends product life and reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK SIM1012-0AXG200 HERMES SMEMA is available for immediate purchase, ideal for industrial automation and manufacturing environments requiring advanced signal conversion and communication.
