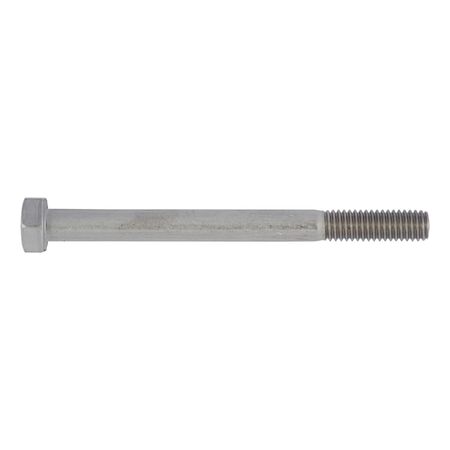

Hex Bolt M10 120mm | Stainless Steel A4 | Hexagon Head | RoHS Compliant | by Wurth
The Hex Bolt M10 120mm is crafted from stainless steel A4, ensuring excellent corrosion resistance for outdoor and marine applications. With a hexagon head and partial metric thread design, it provides secure fastening for mechanical assemblies. Ideal for construction, automotive, and machinery, this bolt complies with DIN 931 standards and is RoHS-compliant, making it a reliable choice for your fastening needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hex Bolt M10 120mm | Stainless Steel A4 | Hexagon Head | RoHS Compliant | by Wurth
Brand: Wurth
SKU: 9010120
Alternatively Known As: Hex Bolt M10 120mm, Stainless Steel Hex Bolt, Metric Hex Bolt M10
Technical Specifications
- Thread type x nominal diameter (d1): M10
- Length (l1): 120 mm
- Head height (k1): 7 mm
- External drive (s1): WS17
- Standards: DIN 931
- Material: Stainless steel A4
- Property class: 70
- Surface: Plain
- Head type: Hexagon head
- Drive type: Outer hexagon
- Thread type: Metric thread
- Thread form: Standard metric thread
- Thread design: Partial thread
- Thread length (metric thread) (b): 26 mm
- Product class: B
- RoHS-compliant: Yes
- Dimensions (H x L x W): 7mm x 120mm x 10mm
- Weight: 0.1 kg
Key Features
- Made from stainless steel A4 for excellent corrosion resistance
- Hexagon head with outer hexagon drive for easy tightening
- Partial metric thread design for secure fastening
- Complies with DIN 931 standard
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- Installation by a qualified tradesperson or technician is recommended to ensure proper torque and secure fastening.
Applications
- Mechanical assemblies requiring corrosion-resistant fasteners
- Outdoor and marine applications due to stainless steel material
- General fastening in construction, automotive, and machinery
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Stainless steel construction increases product lifespan, reducing waste
Warranty Information
Warranty against manufacturing defects as per Wurth standard policy.
Available Now
The Wurth M10 x 120mm Stainless Steel Hexagon Head Bolt is available now for immediate purchase. Ideal for construction, mechanical, and outdoor applications requiring corrosion-resistant fasteners.
