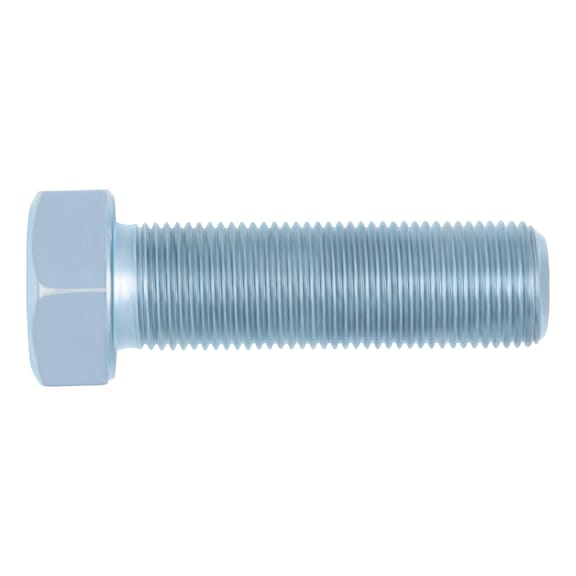

Hex Bolt M10 Fine Thread | Zinc Plated Steel | 40mm Length | by Wurth
The Hex Bolt M10 Fine Thread is crafted from high-strength steel with a zinc plated surface, ensuring excellent corrosion resistance. Ideal for automotive, industrial, and construction applications, this bolt features a hexagon head for secure tightening and complies with RoHS standards for environmental safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hex Bolt M10 Fine Thread | Zinc Plated Steel | 40mm Length | by Wurth
Brand: Wurth
SKU: 601040
Alternatively Known As: Hex Bolt M10 Fine Thread, Zinc Plated Hex Bolt, Metric Hex Bolt M10x1.25
Technical Specifications
- Thread type x nominal diameter x pitch (d1): M10 x 1.25
- Length (l1): 40 mm
- Head height (k1): 6.4 mm
- Standards: Similar to DIN 961
- Material: Steel
- Property class: 8.8
- Surface: Zinc plated
- Head type: Hexagon head
- Drive type: Outer hexagon
- External drive (s1): WS14
- Thread type: Metric thread
- Pitch: 1.25 mm
- Thread form: Fine pitch thread
- Thread design: Partial thread
- Shank diameter: 10 mm
- Thread length (metric thread): 26 mm
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 6.4mm x 40mm x 10mm
- Weight: 0.1 kg
Key Features
- Steel 8.8 property class for high strength
- Zinc plated surface for corrosion resistance
- Hexagon head with outer hexagon drive (WS14) for secure tightening
- Fine pitch metric thread (M10 x 1.25) with partial thread design
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- Installation by a qualified technician or mechanic is recommended to ensure proper torque and secure fastening.
Applications
- Automotive: Suitable for a wide range of Japanese vehicles and equipment
- Industrial: General machinery and equipment fastening
- Construction: Structural and mechanical fastening requiring fine pitch threads
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Zinc plating extends product life reducing waste and replacement frequency
Warranty Information
Wurth provides warranty against manufacturing defects as per company policy.
Available Now
The Wurth M10 x 1.25 Zinc Plated Steel Hexagon Head Bolt 40mm is available now for immediate purchase. Ideal for automotive, industrial, and construction fastening applications.
