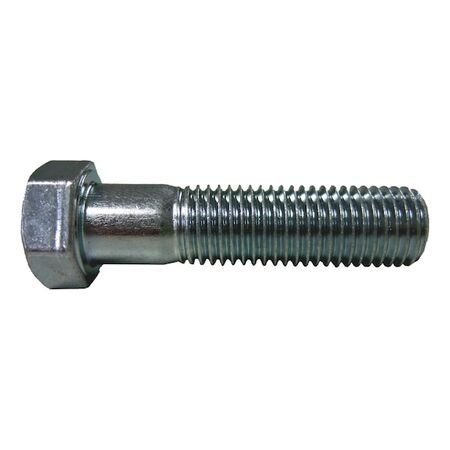

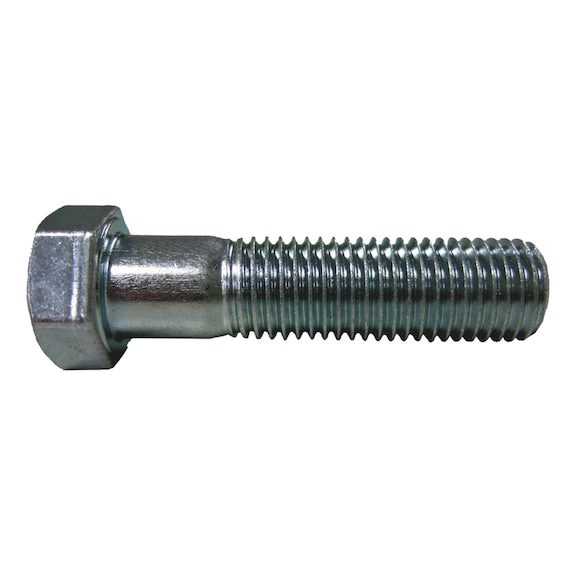

Hex Bolt M10 Fine Thread | Zinc Plated | High Strength Steel | RoHS Compliant | by Wurth
The Hex Bolt M10 Fine Thread is crafted from high-strength steel with a zinc-plated surface, ensuring excellent corrosion resistance. Ideal for automotive and equipment assembly applications, this bolt features a fine pitch metric thread (M10 x 1.25) and a hexagon head for easy tightening. Designed for durability and compliance with RoHS standards, it’s perfect for any project requiring reliable fastening.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hex Bolt M10 Fine Thread | Zinc Plated | High Strength Steel | RoHS Compliant | by Wurth
Brand: Wurth
SKU: 601080
Alternatively Known As: Hex Bolt M10 Fine Thread, Zinc Plated Hex Bolt, Metric Hexagon Head Bolt, Fine Pitch Bolt M10x1.25
Technical Specifications
- Thread type x nominal diameter x pitch (d1): M10 x 1.25
- Length (l1): 80 mm
- Head height (k1): 6.4 mm
- Material: Steel
- Property class: 8.8
- Surface: Zinc plated
- Head type: Hexagon head
- Drive type: Outer hexagon (WS14)
- Thread type: Metric thread
- Pitch: 1.25 mm
- Thread form: Fine pitch thread
- Thread design: Partial thread
- Shank diameter: 10 mm
- Thread length (metric thread): 26 mm
- Product class: A
- Standards: Similar to DIN 960
- Dimensions (H x L x W): 6.4mm x 80mm x 14mm
- Weight: 0.1 kg
Key Features
- Steel material with property class 8.8 for high strength
- Zinc plated surface for corrosion resistance
- Hexagon head with outer hexagon drive (WS14) for easy tightening
- Fine pitch metric thread (M10 x 1.25) with partial thread design
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- Installation by a qualified technician or mechanic is recommended to ensure proper torque and secure fastening.
Applications
- Automotive: Suitable for use in a wide range of vehicles
- Equipment assembly: Ideal for various machinery and equipment requiring fine pitch bolts
- General fastening: Suitable for applications requiring strong, corrosion-resistant bolts
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Zinc plating extends product life reducing waste and replacement frequency
Warranty Information
Wurth provides warranty against manufacturing defects as per company policy.
Available Now
The Wurth M10 x 1.25 x 80mm steel hexagon head bolt is available for immediate purchase, ideal for automotive, machinery, and equipment fastening applications.
