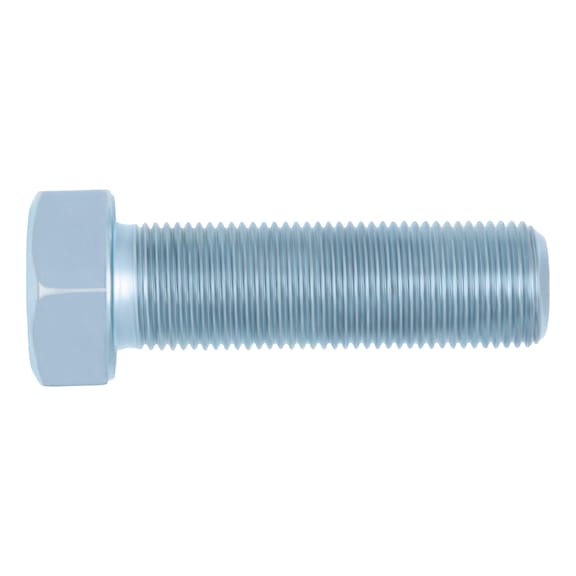

Hex Bolt M12 x 1.25 | Zinc Plated | Steel Material | DIN 960 Standard | by Wurth
Hex bolt M12 x 1.25 is designed for high-strength mechanical assemblies, featuring a zinc plated surface for corrosion resistance. Ideal for automotive and industrial applications, this bolt ensures secure fastening with its hexagon head and fine pitch thread, making it perfect for various machinery and equipment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hex Bolt M12 x 1.25 | Zinc Plated | Steel Material | DIN 960 Standard | by Wurth
Brand: Wurth
SKU: 641270
Alternatively Known As: Hex bolt M12 fine thread, Zinc plated hex bolt, Metric hex bolt M12 x 1.25
Technical Specifications
- Thread type x nominal diameter x pitch (d1): M12 x 1.25
- Length (l1): 70 mm
- Standards: DIN 960
- Material: Steel
- Property class: 8.8
- Surface: Zinc plated
- Head type: Hexagon head
- Drive type: Outer hexagon
- External drive (s1): WS19
- Thread type: Metric thread
- Pitch: 1.25 mm
- Thread form: Fine pitch thread
- Thread design: Partial thread
- Dimensions (H x L x W): 70mm x 70mm x 19mm
- Weight: 0.15 kg
Key Features
- Steel material with property class 8.8 for high strength
- Zinc plated surface for corrosion resistance
- Hexagon head with outer hexagon drive (WS19) for easy tightening
- Partial fine pitch metric thread (M12 x 1.25)
Professional Installation Requirements
- Installation by qualified personnel using appropriate tools (WS19 wrench) is recommended to ensure proper torque and secure fastening.
Applications
- Mechanical assemblies requiring fine pitch metric bolts
- Automotive and machinery fastening
- Industrial equipment assembly
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Zinc plating provides corrosion resistance extending product life and reducing replacement frequency
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
The Wurth M12 x 1.25 x 70mm steel hexagon head bolt zinc plated DIN 960 is available for immediate purchase, ideal for industrial, automotive, and mechanical fastening applications.
