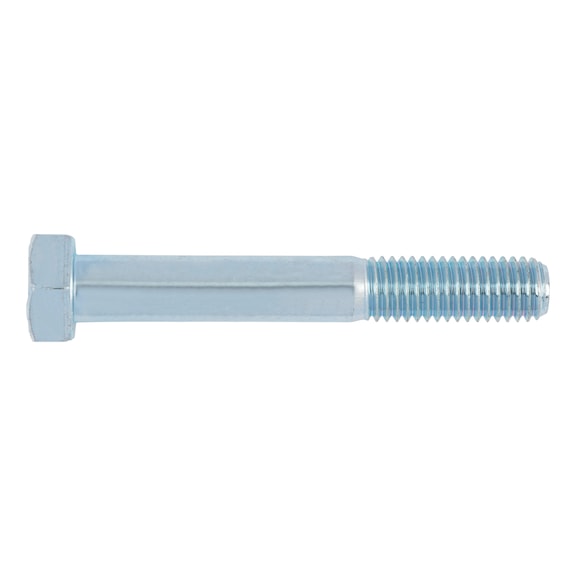

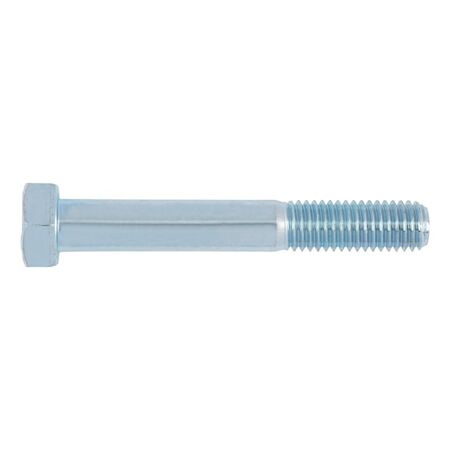

Hex Bolt M6 35mm | Zinc Plated Steel | Property Class 8.8 | RoHS Compliant | by Wurth
The Hex Bolt M6 35mm is designed for reliable mechanical fastening in construction, automotive, and machinery applications. Made from zinc plated steel, it offers excellent corrosion resistance and high strength with a property class of 8.8. Ideal for general assembly, this bolt features a hexagon head for easy tightening and complies with ISO 4014 standards, ensuring durability and safety in your projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hex Bolt M6 35mm | Zinc Plated Steel | Property Class 8.8 | RoHS Compliant | by Wurth
Brand: Wurth
SKU: 53635
Alternatively Known As: Hex bolt M6 35mm, Zinc plated hex bolt, Metric hex bolt M6
Technical Specifications
- Thread type x nominal diameter (d1): M6
- Length (l1): 35 mm
- Head height (k1): 4 mm
- External drive (s1): WS10
- Standards: ISO 4014
- Material: Steel
- Property class: 8.8
- Surface: Zinc plated
- Head type: Hexagon head
- Drive type: Outer hexagon
- Thread type: Metric thread
- Thread form: Standard metric thread
- Thread design: Partial thread
- Thread length (metric thread) (b): 18 mm
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 4mm x 35mm x 6mm
- Weight: 0.1 kg
Key Features
- Hexagon head with outer hexagon drive for easy tightening
- Partial metric thread design
- Zinc plated steel for corrosion resistance
- Property class 8.8 for high strength
- RoHS-compliant
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper torque and fastening integrity.
Applications
- General mechanical fastening
- Construction and assembly
- Automotive and machinery applications
Standards & Compliance
- Complies with AS/NZS 1252 for metric bolts and screws (aligned with ISO 4014)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances.
Warranty Information
Standard manufacturer warranty applies.
Available Now
The Wurth M6 x 35mm Zinc Plated Hexagon Head Bolt is available now for immediate purchase. Ideal for mechanical, construction, and automotive fastening applications.
