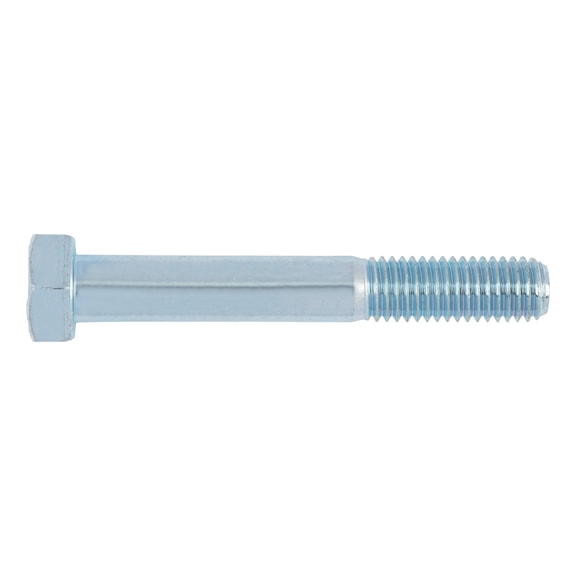

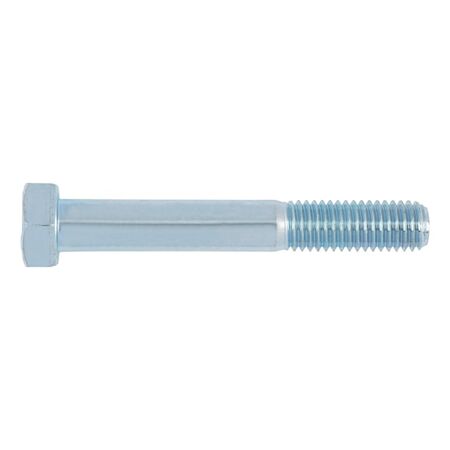

Hex Bolt M6 55mm | Zinc Plated | High-Strength Steel | ISO 4014 Compliant | by Wurth
The Hex Bolt M6 55mm is designed for robust fastening in mechanical assemblies, featuring a zinc plated surface for enhanced corrosion resistance. Made from high-strength steel with a property class of 10.9, this bolt is ideal for industrial machinery, construction, and automotive projects, ensuring secure and durable connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hex Bolt M6 55mm | Zinc Plated | High-Strength Steel | ISO 4014 Compliant | by Wurth
Brand: Wurth
SKU: 1050655
Alternatively Known As: Hex bolt M6 55mm, Zinc plated hex bolt, Metric hex bolt, Steel hex bolt M6
Technical Specifications
- Thread type x nominal diameter (d1): M6
- Length (l1): 55 mm
- Head height (k1): 4 mm
- External drive (s1): WS10
- Standards: ISO 4014
- Material: Steel
- Property class: 10.9
- Surface: Zinc plated
- Head type: Hexagon head
- Drive type: Outer hexagon
- Thread type: Metric thread
- Thread form: Standard metric thread
- Thread design: Partial thread
- Thread length (metric thread) (b): 18 mm
- Design: With shaft
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 4mm x 55mm x 10mm
- Weight: 0.1 kg
Key Features
- Hexagon head with outer hexagon drive for easy tightening
- Made from high-strength steel with property class 10.9
- Zinc plated surface for corrosion resistance
- Partial metric thread design with 18 mm thread length
- Complies with ISO 4014 standard
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- Installation by a qualified technician or tradesperson is recommended to ensure proper torque and secure fastening.
Applications
- Mechanical assemblies requiring strong, durable fastening
- Industrial machinery and equipment
- Construction and structural applications
- Automotive and engineering projects
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Zinc plating extends product life reducing waste
Warranty Information
Wurth provides warranty against manufacturing defects as per company policy.
Available Now
The Wurth M6 x 55mm Zinc Plated Steel Hexagon Head Bolt is available now for immediate purchase. Ideal for industrial, construction, and mechanical fastening applications.
