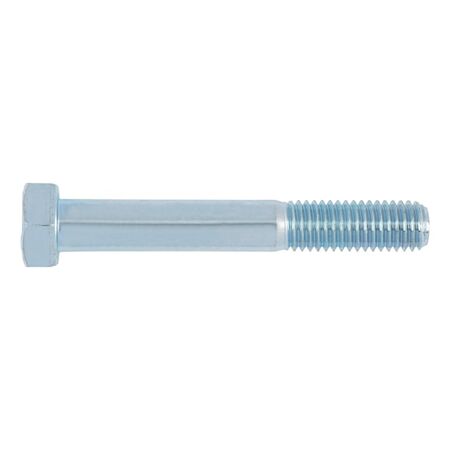

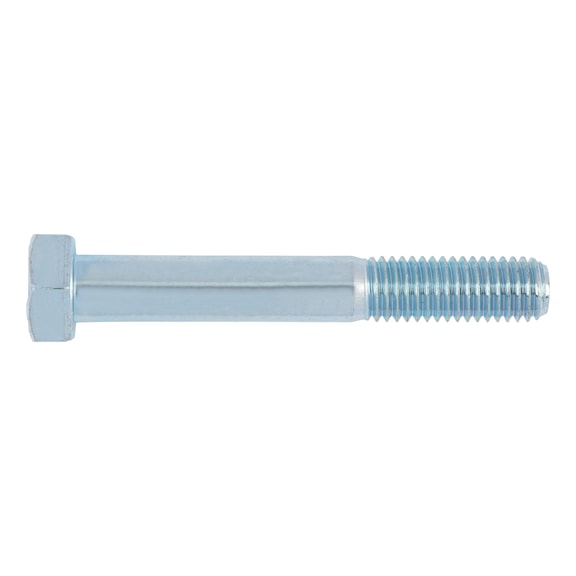

Hex Bolt M6 90mm | Zinc Plated | High Strength Steel | RoHS Compliant | by Wurth
The Hex Bolt M6 90mm is designed for reliable mechanical fastening in construction, automotive, and machinery applications. Featuring a zinc plated surface for corrosion resistance and a high strength steel construction with property class 8.8, this bolt ensures durability and compliance with RoHS standards. Ideal for both professional and DIY projects, it offers easy tightening with its hexagon head and outer hexagon drive.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hex Bolt M6 90mm | Zinc Plated | High Strength Steel | RoHS Compliant | by Wurth
Brand: Wurth
SKU: 53690
Alternatively Known As: Hex bolt M6 90mm, Zinc plated hex bolt, Metric hex bolt M6, Steel hex bolt
Technical Specifications
- Thread type x nominal diameter (d1): M6
- Length (l1): 90 mm
- Head height (k1): 4 mm
- External drive (s1): WS10
- Standards: ISO 4014
- Material: Steel
- Property class: 8.8
- Surface: Zinc plated
- Head type: Hexagon head
- Drive type: Outer hexagon
- Thread type: Metric thread
- Thread form: Standard metric thread
- Thread design: Partial thread
- Thread length (metric thread) (b): 18 mm
- Product class: B
- RoHS-compliant: Yes
- Dimensions (H x L x W): 4mm x 90mm x 10mm
- Weight: 0.1 kg
Key Features
- Hexagon head with outer hexagon drive for easy tightening
- Partial metric thread design
- Zinc plated surface for corrosion resistance
- Made from steel with property class 8.8 for high strength
- RoHS-compliant
Professional Installation Requirements
- Installation by a qualified tradesperson or technician is recommended to ensure proper torque and fastening integrity.
Applications
- General mechanical fastening
- Construction and assembly
- Automotive and machinery applications
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth M6 x 90mm Zinc Plated Hexagon Head Bolt is available now for immediate purchase. Ideal for mechanical, construction, and automotive fastening applications.
