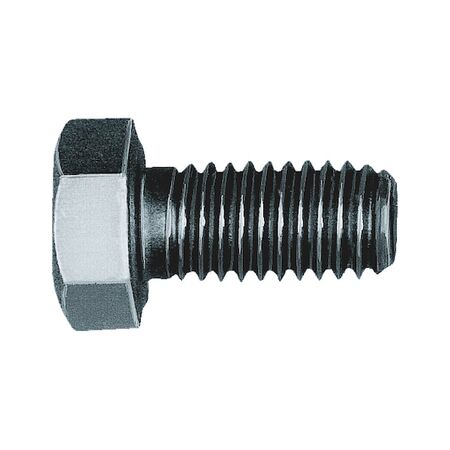

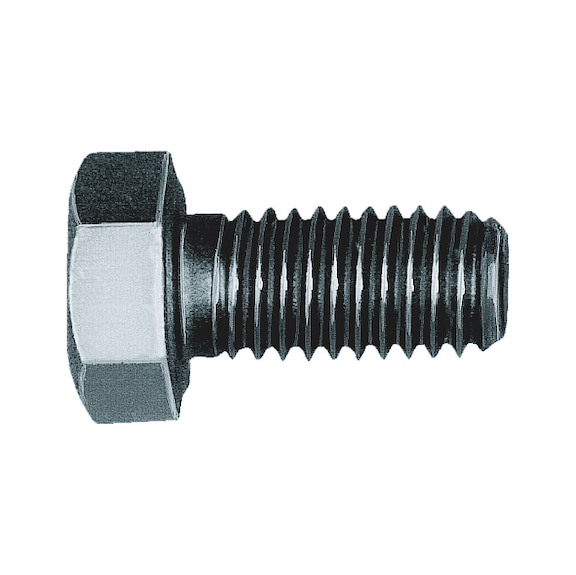

Hex Bolt M8 | Zinc Plated | Steel 8.8 | Hexagon Head | by Wurth
The Hex Bolt M8 is designed for secure fastening in automotive and equipment applications. With a zinc plated surface for corrosion resistance and a property class of 8.8 for high strength, this bolt ensures durability and reliability. Ideal for general mechanical and structural uses, it features a full metric thread design for optimal performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hex Bolt M8 | Zinc Plated | Steel 8.8 | Hexagon Head | by Wurth
Brand: Wurth
SKU: 60820
Alternatively Known As: Hex Bolt M8, Zinc Plated Hex Bolt, Metric Hex Bolt, Steel Hex Bolt 8.8
Technical Specifications
- Thread type x nominal diameter (d1): M8
- Length (l1): 20 mm
- Head height (k1): 5.3 mm
- External drive (s1): WS12
- Standards: ISO 4017 similar
- Material: Steel
- Property class: 8.8
- Surface: Zinc plated
- Head type: Hexagon head
- Drive type: Outer hexagon
- Thread type: Metric thread
- Thread form: Standard metric thread
- Thread design: Full thread
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 5.3mm x 20mm x 8mm
- Weight: 0.1 kg
Key Features
- Hexagon head with outer hexagon drive for easy tightening
- Full metric thread design for secure fastening
- Steel material with property class 8.8 for high strength
- Zinc plated surface for corrosion resistance
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- Installation by a qualified technician or mechanic is recommended to ensure proper torque and secure fastening.
Applications
- Automotive: Suitable for use in a wide range of vehicles
- Equipment assembly: Ideal for various machinery and equipment fastening
- General fastening: Suitable for general mechanical and structural applications
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Zinc plating extends product life reducing waste and replacement frequency
Warranty Information
Warranty against manufacturing defects as per Wurth standard policy.
Available Now
The Wurth M8 x 20mm Hexagon Head Bolt is available now for immediate purchase. Ideal for automotive, equipment, and general fastening applications.
