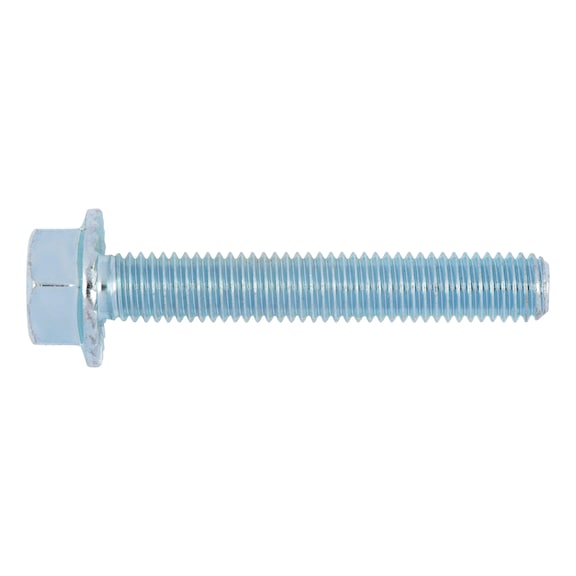

Hex Flange Bolt M4 | Zinc Plated Steel | Serration Locking Device | by Wurth
The Hex Flange Bolt M4 is designed for secure fastening in mechanical assemblies, featuring a zinc plated steel construction for corrosion resistance and a serration locking device to prevent self-loosening. Ideal for industrial machinery, automotive, and general purpose applications, this bolt ensures high tensile strength with a property class of 8.8, making it a reliable choice for various fastening needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hex Flange Bolt M4 | Zinc Plated Steel | Serration Locking Device | by Wurth
Brand: Wurth

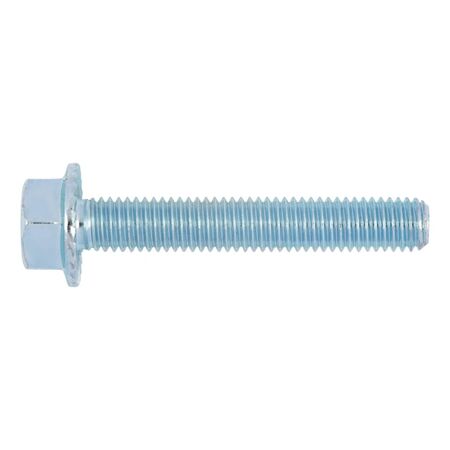

SKU: 2740416
Alternatively Known As: Hex flange bolt M4, Zinc plated hex bolt, Serrated flange bolt, Metric hex bolt M4x16
Technical Specifications
- Thread type x nominal diameter (d1): M4
- Length (l1): 16 mm
- Head diameter (dc): 10 mm
- Head height (k1): 4.2 mm
- Standards: WN 274
- Material: Steel
- Property class: 8.8
- Surface: Zinc plated
- Locking device operating principle: Serration
- Locking function: Locking against self-loosening by mechanical interlocking
- Head type: Hexagon head with flange
- Drive type: Outer hexagon
- External drive (s1): WS7
- Thread type: Metric thread
- Pitch: 0.7 mm
- Thread form: Standard metric thread
- Thread design: Full thread
- RoHS-compliant: Yes
- Dimensions (H x L x W): 4.2mm x 16mm x 10mm
- Weight: 0.1 kg
Key Features
- Hexagon head with flange for increased bearing surface
- Zinc plated steel for corrosion resistance
- Serration locking device for mechanical interlocking to prevent self-loosening
- Full metric thread with pitch 0.7 mm
- Property class 8.8 for high tensile strength
Professional Installation Requirements
- Installation by a qualified technician or tradesperson recommended to ensure correct torque and secure fastening.
Applications
- Mechanical assemblies requiring secure fastening
- Industrial machinery and equipment
- Automotive and construction applications
- General purpose fastening in metal and wood
Standards & Compliance
- Complies with AS/NZS 1252 – Mechanical fasteners for general engineering
Environmental Benefits
- RoHS-compliant material ensuring reduced hazardous substances
- Zinc plating extends product life reducing waste and replacement frequency
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
The Wurth M4 x 16mm Hexagon Head Flange Bolt is available for immediate purchase, ideal for industrial, automotive, and general mechanical fastening applications.
