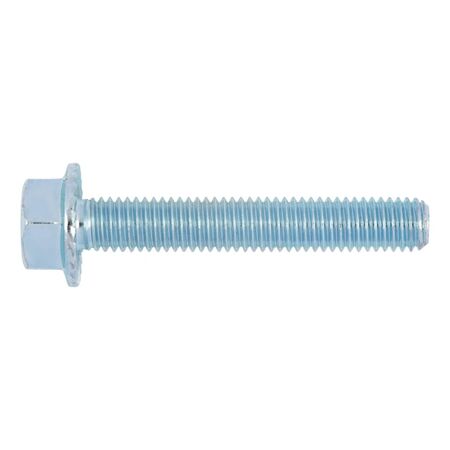

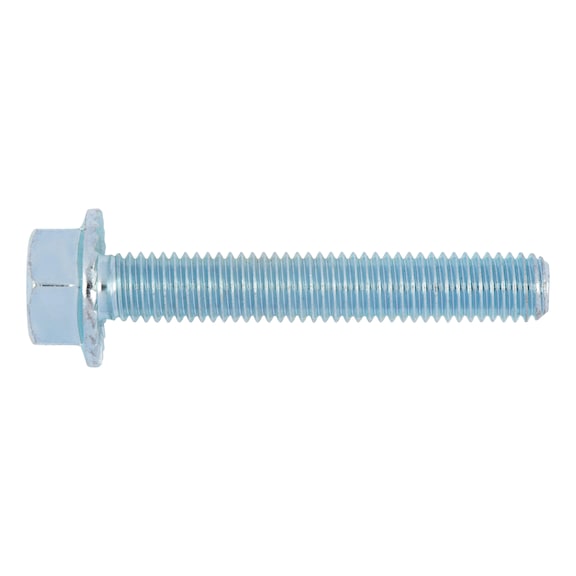

Hex Flange Bolt M5 | Zinc Plated | Serrated Locking Mechanism | High Strength 8.8 | by Wurth
The Hex Flange Bolt M5 is designed for secure fastening in mechanical assemblies, automotive repairs, and industrial applications. With a zinc plated surface for corrosion resistance and a serrated locking mechanism to prevent loosening, this bolt ensures reliability and durability. Ideal for professionals, it meets AS/NZS 1252 standards and is RoHS-compliant, making it a responsible choice for your fastening needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hex Flange Bolt M5 | Zinc Plated | Serrated Locking Mechanism | High Strength 8.8 | by Wurth
Brand: Wurth
SKU: 2740516
Alternatively Known As: Hex flange bolt M5, Zinc plated hex bolt, Serrated flange bolt, Metric flange bolt M5x16
Technical Specifications
- Thread type x nominal diameter (d1): M5
- Length (l1): 16 mm
- Head diameter (dc): 11.8 mm
- Head height (k1): 5.4 mm
- Standards: WN 274
- Material: Steel
- Property class: 8.8
- Surface: Zinc plated
- Locking device operating principle: Serration
- Locking function: Locking against self-loosening by mechanical interlocking
- Head type: Hexagon head with flange
- Drive type: Outer hexagon
- External drive (s1): WS8
- Thread type: Metric thread
- Pitch: 0.8 mm
- Thread form: Standard metric thread
- Thread design: Full thread
- RoHS-compliant: Yes
- Dimensions (H x L x W): 5.4mm x 16mm x 11.8mm
- Weight: 0.1 kg
Key Features
- Hexagon head with flange for better load distribution
- Zinc plated surface for corrosion resistance
- Locking against self-loosening by mechanical interlocking using serration
- Full metric thread with pitch 0.8 mm
- Property class 8.8 steel for high strength
Professional Installation Requirements
- Installation by a qualified technician or tradesperson is recommended to ensure proper torque and secure fastening.
Applications
- Mechanical assemblies requiring secure fastening
- Automotive repairs and maintenance
- Industrial machinery and equipment
- General construction and manufacturing
Standards & Compliance
- Complies with AS/NZS 1252 – Mechanical fasteners for general engineering
Environmental Benefits
- RoHS-compliant material ensures reduced hazardous substances
- Zinc plating extends product life reducing waste and replacement frequency
Warranty Information
Wurth provides warranty against manufacturing defects as per company policy.
Available Now
The Wurth M5 x 16mm Hexagon Head Flange Bolt is available for immediate purchase, ideal for mechanical, automotive, and industrial fastening applications.
