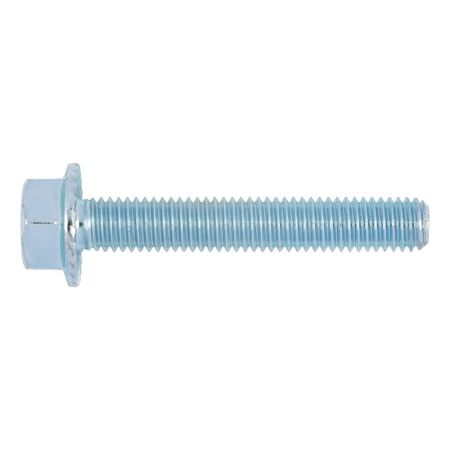

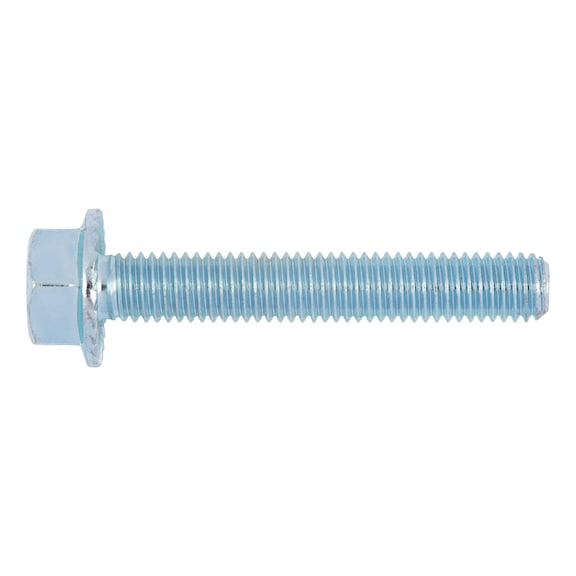

Hex Flange Bolt M5 | Zinc Plated Steel | Serration Locking Device | by Wurth
The Hex Flange Bolt M5 is designed for secure fastening in mechanical assemblies, featuring a zinc plated steel construction for corrosion resistance and a serration locking device to prevent self-loosening. Ideal for industrial machinery, automotive, and construction applications, this bolt ensures high strength with a property class of 8.8, making it a reliable choice for professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Thread type x nominal diameter (d1): M5
- Length (l1): 10 mm
- Head diameter (dc): 11.8 mm
- Head height (k1): 5.4 mm
- Standards: WN 274
- Material: Steel
- Property class: 8.8
- Surface: Zinc plated
- Locking device operating principle: Serration
- Locking function: Locking against self-loosening by mechanical interlocking
- Head type: Hexagon head with flange
- Drive type: Outer hexagon
- External drive (s1): WS8
- Thread type: Metric thread
- Pitch: 0.8 mm
- Thread form: Standard metric thread
- Thread design: Full thread
- RoHS-compliant: Yes
- Dimensions (H x L x W): 5.4mm x 10mm x 11.8mm
- Weight: 0.1 kg
Key Features
- Hexagon head with flange for better load distribution
- Zinc plated steel for corrosion resistance
- Serration locking device to prevent self-loosening
- Full metric thread with pitch 0.8 mm
- Property class 8.8 for high strength
Professional Installation Requirements
- Installation by a qualified technician or tradesperson is recommended to ensure proper torque and secure fastening.
Applications
- Mechanical assemblies requiring secure fastening
- Industrial machinery and equipment
- Automotive and construction applications
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material ensures reduced hazardous substances
- Zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to Wurth's warranty policy.
Available Now
The Wurth M5 x 10mm Hexagon Head Flange Bolt is available for immediate purchase, ideal for industrial, automotive, and construction fastening applications.
