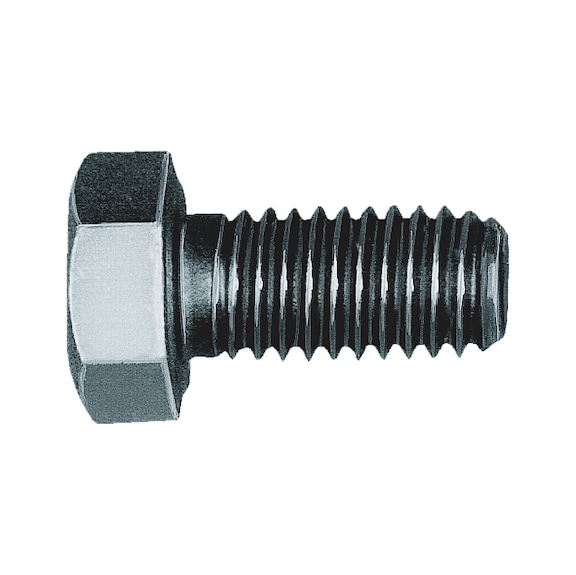

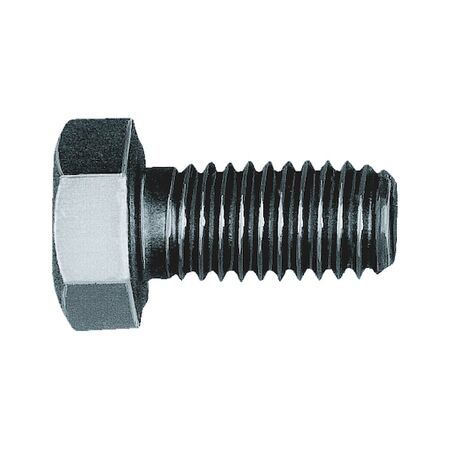

Hex Head Bolt M10 Fine Thread | Zinc Plated Steel | High Strength | RoHS Compliant | by Wurth
The Hex Head Bolt M10 Fine Thread is crafted from high-strength steel with a zinc plated surface, ensuring excellent corrosion resistance. Ideal for automotive and industrial applications, this bolt features a fine pitch metric thread (M10 x 1.25) and a hexagon head for easy tightening. Perfect for mechanical assemblies requiring durability and reliability, it complies with AS/NZS 1252 standards for metric bolts.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hex Head Bolt M10 Fine Thread | Zinc Plated Steel | High Strength | RoHS Compliant | by Wurth
Brand: Wurth
SKU: 601030
Alternatively Known As: Hex Head Bolt M10 Fine Thread Zinc Plated, Metric Hex Bolt M10x1.25, Zinc Plated Steel Bolt M10
Technical Specifications
- Thread type x nominal diameter x pitch (d1): M10 x 1.25
- Length (l1): 30 mm
- Head height (k1): 6.4 mm
- Material: Steel
- Property class: 8.8
- Surface: Zinc plated
- Head type: Hexagon head
- Drive type: Outer hexagon
- External drive (s1): WS14
- Thread type: Metric thread
- Pitch: 1.25 mm
- Thread form: Fine pitch thread
- Thread design: Full thread
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 6.4mm x 30mm x 10mm
- Weight: 0.1 kg
Key Features
- Steel material with property class 8.8 for high strength
- Zinc plated surface for corrosion resistance
- Hexagon head with outer hexagon drive (WS14) for easy tightening
- Fine pitch metric thread (M10 x 1.25) with full thread design
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- Installation by a qualified technician or mechanic is recommended to ensure correct torque and fastening integrity.
Applications
- Automotive: Suitable for a wide range of Japanese vehicles and equipment
- Industrial: General fastening applications requiring fine pitch metric bolts
- Mechanical assemblies requiring high strength and corrosion resistance
Standards & Compliance
- Complies with AS/NZS 1252 for metric bolts and screws
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Zinc plating extends product life reducing waste and replacement frequency
Warranty Information
Wurth provides warranty against manufacturing defects as per company policy.
Available Now
The Wurth M10 x 1.25 Hexagon Head Bolt is available for immediate purchase, ideal for automotive and industrial fastening applications.
