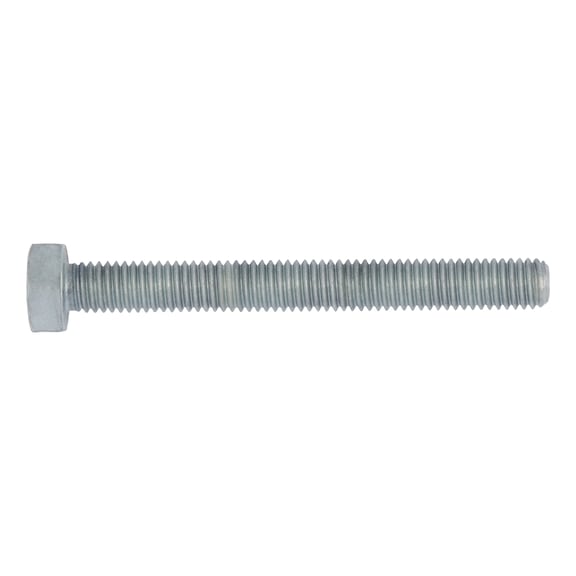

Hex Head Screw DIN 933 | M10 | Hot-Dip Galvanised | 25 PCS | by Wurth
Hex Head Screw DIN 933 M10 is designed for robust fastening in construction and mechanical applications. With a hot-dip galvanized finish, it offers superior corrosion resistance, making it ideal for outdoor and industrial use. This screw features a full metric thread design and is manufactured from high-strength property class 8.8U steel, ensuring durability and reliability in various fastening tasks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hex Head Screw DIN 933 | M10 | Hot-Dip Galvanised | 25 PCS | by Wurth
Brand: Wurth
SKU: 5971025
Alternatively Known As: Hex bolt M10, Hot dip galvanized hex screw, Metric hex head bolt, DIN 933 bolt, ISO 4017 equivalent bolt
Technical Specifications
- Thread type x nominal diameter (d1): M10
- Length (l1): 25 mm
- Head height (k1): 6.4 mm
- External drive (s1): WS17
- Standards: DIN 933 (withdrawn, replaced by ISO 4017)
- Material: Steel
- Property class: 8.8U
- Surface: Hot dip galvanized
- Head type: Hexagon head
- Drive type: Outer hexagon
- Thread type: Metric thread
- Thread form: Standard metric thread
- Thread design: Full thread
- Thread length (metric thread): 25 mm
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 6.4mm x 25mm x 17mm
- Weight: 0.05 kg
Key Features
- Manufactured with undersized thread in tolerance class 6AZ (thread play) before surface protection is applied (DIN EN ISO 10684).
- ISO-compliant after hot-dip galvanisation.
- Full metric thread design with thread length of 25 mm.
- Hexagon head with outer hexagon drive (WS17) for secure tightening.
- Hot dip galvanized surface for enhanced corrosion resistance.
- Property class 8.8U steel for high strength.
Professional Installation Requirements
- Installation by a qualified tradesperson or technician is recommended to ensure proper torque and secure fastening.
Applications
- Mechanical assembly requiring strong, corrosion-resistant fasteners
- Construction and structural applications
- Automotive and machinery fastening
- General purpose fastening in metal and wood
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Hot-dip galvanisation provides long-lasting corrosion protection reducing the need for frequent replacements and waste.
Warranty Information
Wurth provides warranty against manufacturing defects as per company policy.
Available Now
Wurth Hex Head Screw DIN 933 Steel 8.8U Hot-Dip Galvanised 25 PCS is available for immediate purchase, ideal for construction, mechanical, and general fastening applications.
