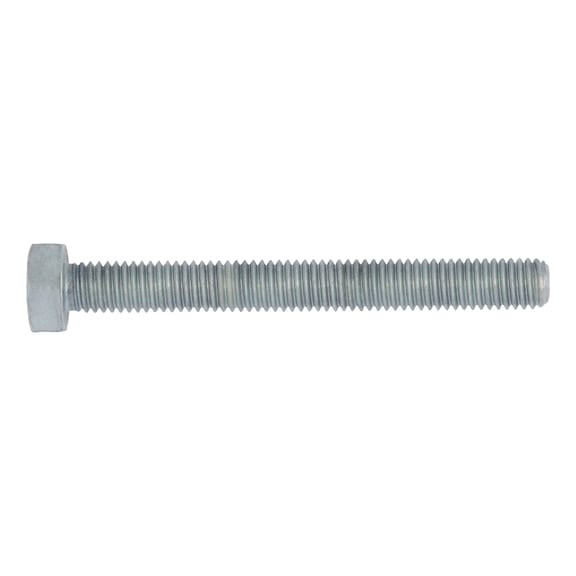

Hex Head Screw DIN 933 | M10 Thread | Hot-Dip Galvanised | Corrosion Resistant | @Pack of 25 | by Wurth
Hex Head Screw DIN 933 with M10 thread and hot-dip galvanised finish—ideal for mechanical assemblies and construction applications. Built for industrial use, these screws offer exceptional corrosion resistance and secure fastening with their hexagon head design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hex Head Screw DIN 933 | M10 Thread | Hot-Dip Galvanised | Corrosion Resistant | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 5971016
Alternatively Known As: Hex bolt M10, Hex cap screw M10, Hot dip galvanized hex screw, Metric hex head bolt, DIN 933 screw

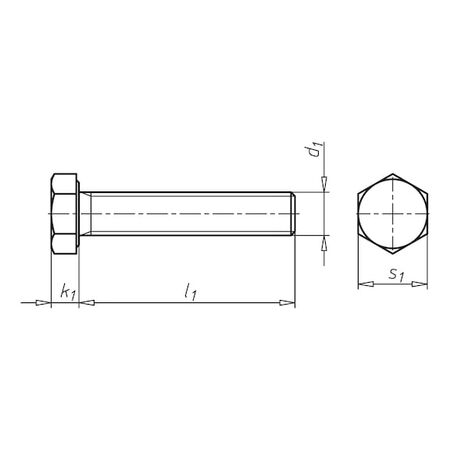

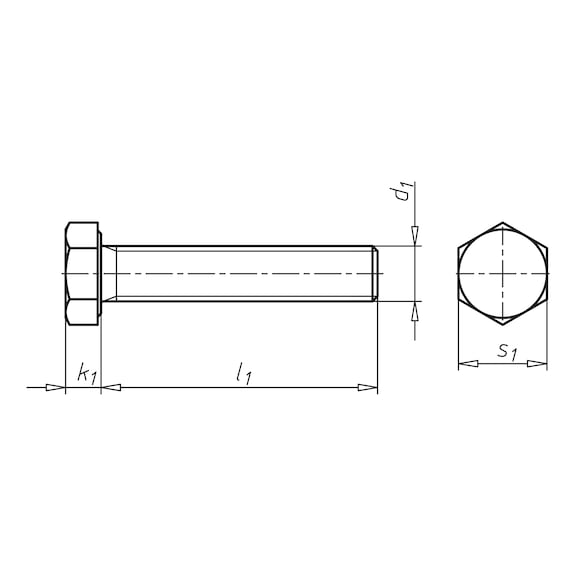

Technical Specifications
- Thread type x nominal diameter (d1): M10
- Length (l1): 16 mm
- Head height (k1): 6.4 mm
- External drive (s1): WS17
- Standards: DIN 933 (withdrawn, replaced by ISO 4017)
- Material: Steel
- Property class: 8.8U
- Surface: Hot dip galvanized
- Head type: Hexagon head
- Drive type: Outer hexagon
- Thread type: Metric thread
- Thread form: Standard metric thread
- Thread design: Full thread
- Thread length (metric thread): 16 mm
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 6.4mm x 16mm x 17mm
- Weight: 0.05 kg
Key Features
- Manufactured with undersized thread in tolerance class 6AZ (thread play) before surface protection is applied (DIN EN ISO 10684).
- ISO-compliant after hot-dip galvanisation.
- Full metric thread design with outer hexagon drive (WS17).
- Hot dip galvanized surface for enhanced corrosion resistance.
- Hexagon head for secure tightening.
Professional Installation Requirements
- Installation by a qualified tradesperson or technician is recommended to ensure proper torque and secure fastening.
Applications
- Mechanical assemblies requiring strong, corrosion-resistant fastening
- Construction and structural applications
- Automotive and machinery assembly
- General purpose fastening in industrial environments
Standards & Compliance
- Complies with AS/NZS 1170 for structural design actions relevant to construction and building applications.
Environmental Benefits
- Hot-dip galvanisation provides long-lasting corrosion protection, reducing the need for frequent replacements and minimizing waste.
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
Available for immediate purchase, ideal for construction, mechanical, and industrial fastening applications.
