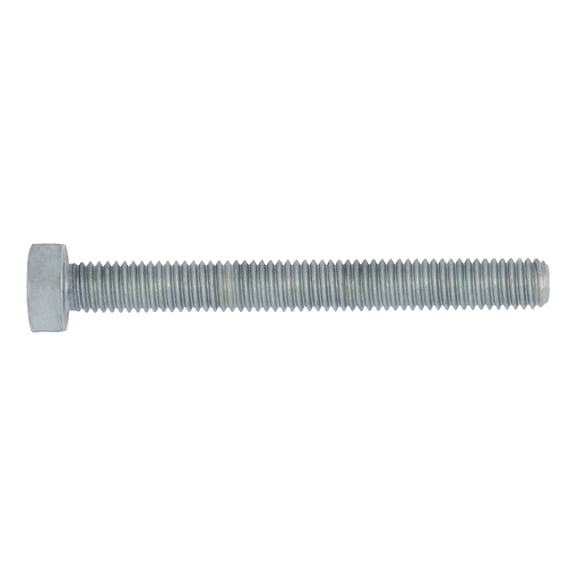

Hex Head Screw DIN 933 M10 | Hot-Dip Galvanised | Corrosion Resistant | @Pack of 25 | by Wurth
Hex Head Screw DIN 933 M10 is designed for robust fastening in various applications, featuring a hot-dip galvanized surface for superior corrosion resistance. Ideal for construction, automotive, and mechanical assembly, this screw ensures secure fastening with its full metric thread design and hexagon head, making it easy to tighten with standard tools.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hex Head Screw DIN 933 M10 | Hot-Dip Galvanised | Corrosion Resistant | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 5971045
Alternatively Known As: Hex bolt M10, Hex cap screw M10, Hot-dip galvanized hex screw, Metric hex head bolt, DIN 933 screw
Technical Specifications
- Thread type x nominal diameter (d1): M10
- Length (l1): 45 mm
- Head height (k1): 6.4 mm
- External drive (s1): WS17
- Standards: DIN 933 (withdrawn, replaced by ISO 4017)
- Material: Steel
- Property class: 8.8U
- Surface: Hot dip galvanized
- Head type: Hexagon head
- Drive type: Outer hexagon
- Thread type: Metric thread
- Thread form: Standard metric thread
- Thread design: Full thread
- Thread length (metric thread): 45 mm
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 6.4mm x 45mm x 17mm
- Weight: 0.05 kg
Key Features
- Manufactured with undersized thread in tolerance class 6AZ (thread play) before surface protection is applied (DIN EN ISO 10684).
- ISO-compliant after hot-dip galvanisation.
- Hot dip galvanized surface for enhanced corrosion resistance.
- Full metric thread design with outer hexagon drive for secure fastening.
- Hexagon head for easy tightening with standard tools.
- RoHS-compliant ensuring environmental safety.
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper torque and secure fastening, avoiding use with oversized nuts to prevent joint failure.
Applications
- Mechanical assembly requiring strong, corrosion-resistant fasteners
- Construction and structural applications
- Automotive and machinery fastening
- General purpose fastening in outdoor or humid environments
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation) for electrical safety when used in electrical assemblies
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems for workplace safety in handling and installation
Environmental Benefits
- Hot-dip galvanisation extends product life, reducing the need for frequent replacements and minimizing waste.
- RoHS compliance ensures the product is free from hazardous substances.
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
Available for immediate purchase, ideal for construction, mechanical, and general fastening applications requiring corrosion resistance and strength.
