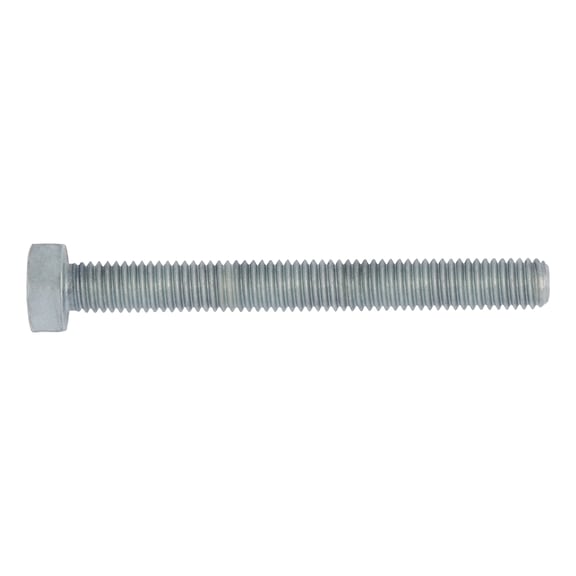

Hex Head Screw DIN 933 | M10 | Steel 8.8U | Hot-Dip Galvanised | @Pack of 10 | by Wurth
Hex Head Screw DIN 933 M10 is designed for robust fastening in construction and mechanical applications. Made from high-strength Steel 8.8U and featuring a hot-dip galvanized finish, it offers excellent corrosion resistance. Ideal for outdoor and humid environments, this screw ensures secure fastening and longevity, making it a reliable choice for professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hex Head Screw DIN 933 | M10 | Steel 8.8U | Hot-Dip Galvanised | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 5971060
Alternatively Known As: Hex bolt M10, Hex cap screw M10, Hot-dip galvanized hex screw, Metric hex head screw, DIN 933 bolt
Technical Specifications
- Thread type x nominal diameter (d1): M10
- Length (l1): 60 mm
- Head height (k1): 6.4 mm
- External drive (s1): WS17
- Standards: DIN 933 (withdrawn, replaced by ISO 4017)
- Material: Steel
- Property class: 8.8U
- Surface: Hot dip galvanized
- Head type: Hexagon head
- Drive type: Outer hexagon
- Thread type: Metric thread
- Thread form: Standard metric thread
- Thread design: Full thread
- Thread length (metric thread): 60 mm
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 6.4mm x 60mm x 17mm
- Weight: 0.05 kg
Key Features
- Manufactured with undersized thread in tolerance class 6AZ (thread play) before surface protection is applied (DIN EN ISO 10684).
- ISO-compliant after hot-dip galvanisation.
- Full metric thread design with hexagon head and outer hexagon drive.
- Hot dip galvanized surface for enhanced corrosion resistance.
- Property class 8.8U steel for high strength.
Professional Installation Requirements
- Installation by a qualified tradesperson or technician is recommended to ensure proper torque and secure fastening.
Applications
- Mechanical assembly requiring strong, corrosion-resistant fasteners
- Construction and structural applications
- Automotive and machinery fastening
- General purpose fastening in outdoor or humid environments
Standards & Compliance
- AS/NZS 4780 – Hot-dip galvanized (zinc) coatings on fabricated ferrous articles
Environmental Benefits
- Hot-dip galvanisation provides long-lasting corrosion protection, reducing the need for frequent replacements and minimizing waste.
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
Wurth Hex Head Screw M10 x 60mm Steel 8.8U Hot-Dip Galvanised DIN 933 10 PCS is available for immediate purchase, ideal for construction, mechanical, and general fastening applications.
