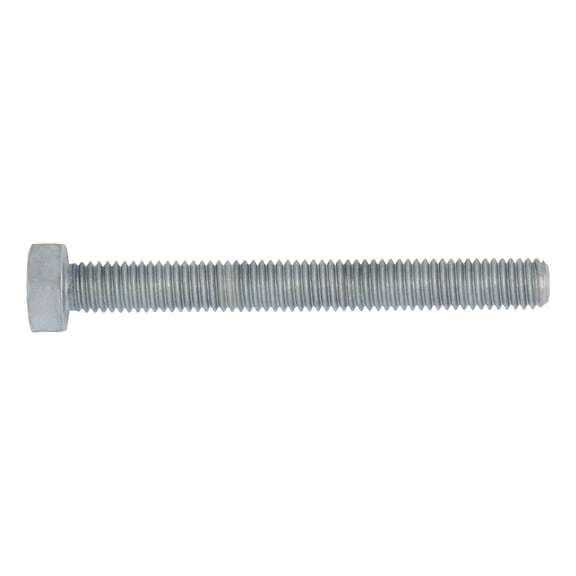

Hex Head Screw DIN 933 M10 | Steel 8.8U | Hot-Dip Galvanised | @Pack of 25 | by Wurth
Hex Head Screw DIN 933 M10 is designed for robust fastening in construction and mechanical applications. Made from high-strength steel 8.8U and featuring a hot-dip galvanized surface, it offers excellent corrosion resistance. Ideal for industrial use, this screw ensures secure fastening and compliance with ISO standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hex Head Screw DIN 933 M10 | Steel 8.8U | Hot-Dip Galvanised | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 5971030
Alternatively Known As: Hex bolt M10, Hex cap screw M10, Hot dip galvanized hex screw, Metric hex head bolt
Technical Specifications
- Thread type x nominal diameter (d1): M10
- Length (l1): 30 mm
- Head height (k1): 6.4 mm
- External drive (s1): WS17
- Standards: DIN 933 (withdrawn, replaced by ISO 4017)
- Material: Steel
- Property class: 8.8U
- Surface: Hot dip galvanized
- Head type: Hexagon head
- Drive type: Outer hexagon
- Thread type: Metric thread
- Thread form: Standard metric thread
- Thread design: Full thread
- Thread length (metric thread): 30 mm
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 6.4mm x 30mm x 17mm
- Weight: 0.05 kg
Key Features
- Manufactured with undersized thread in tolerance class 6AZ (thread play) before surface protection is applied (DIN EN ISO 10684).
- ISO-compliant after hot-dip galvanisation.
- Full metric thread design with outer hexagon drive.
- Hot dip galvanized surface for enhanced corrosion resistance.
- Steel material with property class 8.8U for high strength.
Professional Installation Requirements
- Installation by a qualified tradesperson or technician is recommended to ensure proper torque and secure fastening.
Applications
- Mechanical assembly requiring strong, corrosion-resistant fasteners
- Construction and structural applications
- General purpose fastening in industrial and automotive sectors
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Hot-dip galvanisation provides long-lasting corrosion protection reducing the need for frequent replacements and waste.
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
Wurth Hex Head Screw M10 x 30mm Steel 8.8U Hot-Dip Galvanised is available for immediate purchase, ideal for construction, mechanical, and industrial fastening applications.
