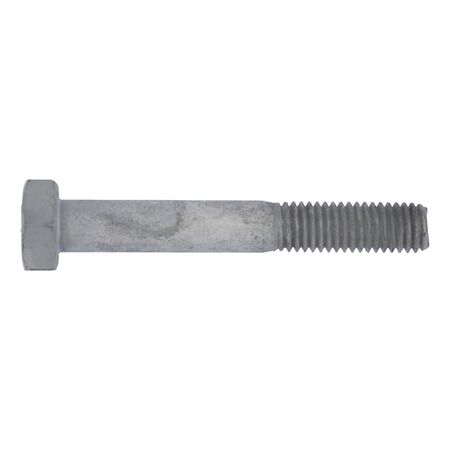

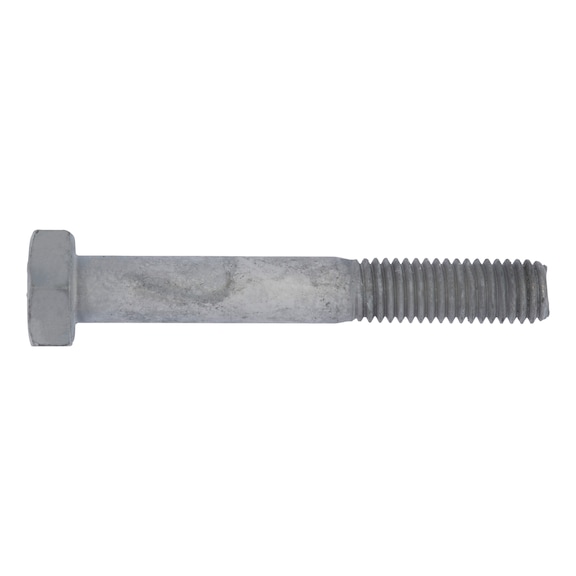

Hex Head Screw ISO 4014 M16x100 | Hot Dip Galvanised | 8.8U Steel | WS24 Drive | @Each of 1 | by Wurth
Hex Head Screw ISO 4014 M16x100 is designed for construction and structural applications, featuring a hot dip galvanised surface for superior corrosion resistance. With an 8.8U steel construction and WS24 drive, this screw ensures secure fastening in outdoor and industrial environments, making it ideal for mechanical assemblies and robust installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hex Head Screw ISO 4014 M16x100 | Hot Dip Galvanised | 8.8U Steel | WS24 Drive | @Each of 1 | by Wurth
Brand: Wurth
SKU: 59616100
Alternatively Known As: Hex bolt M16x100, Hot dip galvanized hex screw, ISO 4014 hex head bolt, Structural hex bolt, Wurth hex head fastener

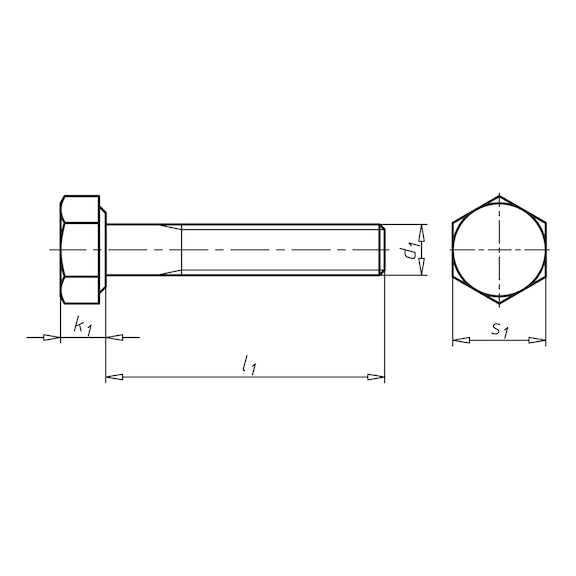

Technical Specifications
- Thread type x nominal diameter (d1): M16
- Length (l1): 100 mm
- Head height (k1): 10 mm
- External drive (s1): WS24
- Standards: ISO 4014
- Material: Steel
- Property class: 8.8U
- Surface: Hot dip galvanized
- Head type: Hexagon head
- Drive type: Outer hexagon
- Thread type: Metric thread
- Thread form: Standard metric thread
- Thread design: Partial thread
- Thread length (b): 38 mm
- Design: With shaft
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 10mm x 100mm x 24mm
- Weight: 0.2 kg
Key Features
- Manufactured with undersized thread in tolerance class 6AZ (thread play) before surface protection
- Hot dip galvanised surface for enhanced corrosion resistance
- ISO 4014 compliant after galvanisation
- Hexagon head with outer hexagon drive (WS24)
- Partial metric thread with shaft design
- RoHS-compliant
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure correct torque and secure fastening, especially in structural applications.
Applications
- Construction and structural applications requiring strong, corrosion-resistant fasteners
- Mechanical assemblies needing ISO 4014 compliant hex head screws
- Outdoor and industrial environments where hot dip galvanisation is essential
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Hot dip galvanisation extends product life reducing replacement frequency and waste
- RoHS-compliant ensuring reduced hazardous substances
Warranty Information
Wurth provides standard manufacturer warranty covering defects in material and workmanship.
Available Now
The Wurth Hex Head Screw ISO 4014 M16x100 hot dip galvanised is available for immediate purchase, ideal for construction, mechanical, and outdoor applications requiring durable fasteners.
