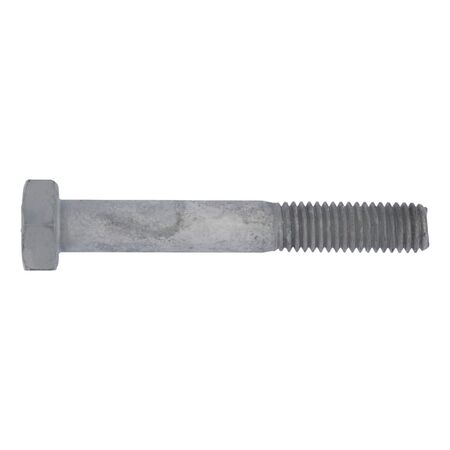

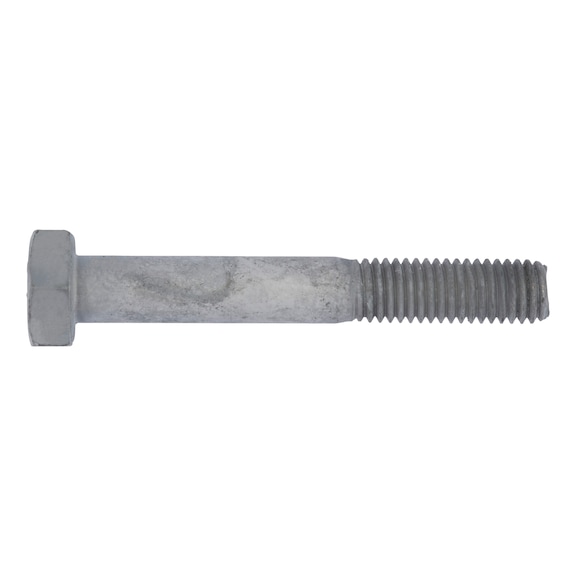

Hex Head Screw ISO 4014 M16x110 | Hot Dip Galvanised | 8.8U Steel | WS24 Drive | by Wurth
Hex Head Screw ISO 4014 M16x110 is designed for construction and structural applications, featuring a hot dip galvanised surface for superior corrosion resistance. With a robust 8.8U steel construction and WS24 drive, this screw ensures secure fastening in mechanical assemblies and outdoor environments, making it ideal for professionals seeking reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hex Head Screw ISO 4014 M16x110 | Hot Dip Galvanised | 8.8U Steel | WS24 Drive | by Wurth
Brand: Wurth
SKU: 59616110
Alternatively Known As: Hex bolt M16x110, Hot dip galvanized hex head screw, ISO 4014 hex bolt, Structural hex bolt, Metric hex head screw

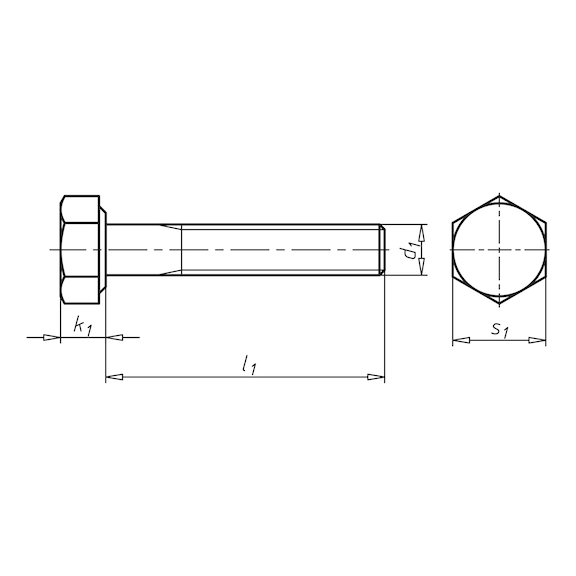

Technical Specifications
- Thread type x nominal diameter: M16
- Length: 110 mm
- Head height: 10 mm
- External drive: WS24
- Standards: ISO 4014
- Material: Steel
- Property class: 8.8U
- Surface: Hot dip galvanized
- Head type: Hexagon head
- Drive type: Outer hexagon
- Thread type: Metric thread
- Thread form: Standard metric thread
- Thread design: Partial thread
- Thread length: 38 mm
- Design: With shaft
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 10mm x 110mm x 24mm
- Weight: 0.2 kg
Key Features
- Manufactured with undersized thread in tolerance class 6AZ (thread play) before surface protection
- Hot dip galvanised surface protection compliant with DIN EN ISO 10684
- ISO 4014 compliant after galvanisation
- Hexagon head with outer hexagon drive (WS24)
- Partial metric thread with shaft design
- RoHS-compliant
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure proper torque and secure fastening in structural applications.
Applications
- Construction and structural applications requiring strong, corrosion-resistant fasteners
- Mechanical assemblies needing ISO 4014 compliant hex head screws
- Outdoor and industrial environments where hot dip galvanised protection is essential
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Hot dip galvanisation provides long-lasting corrosion resistance reducing the need for frequent replacements
- RoHS-compliant ensuring reduced hazardous substances
Warranty Information
Wurth standard warranty against manufacturing defects applies.
Available Now
The Wurth Hex Head Screw ISO 4014 M16x110 is available for immediate purchase, ideal for construction, mechanical, and outdoor applications requiring durable and corrosion-resistant fasteners.
