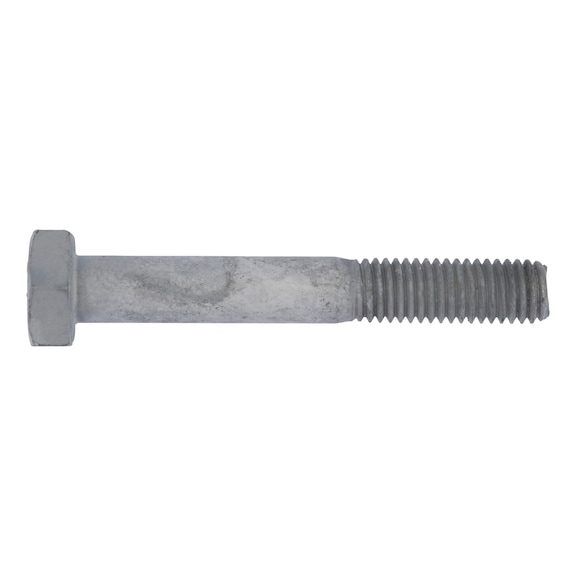

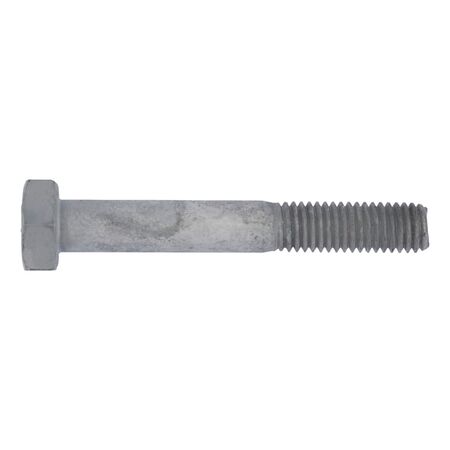

Hex Head Screw ISO 4014 | M16x120 | 8.8U Steel | Hot Dip Galvanised | by Wurth
Hex Head Screw ISO 4014 with M16x120 dimensions and 8.8U steel construction—ideal for construction and industrial applications. Built for outdoor and marine use, this hot dip galvanized screw offers exceptional corrosion resistance and high strength, ensuring secure fastening in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hex Head Screw ISO 4014 | M16x120 | 8.8U Steel | Hot Dip Galvanised | by Wurth
Brand: Wurth
SKU: 59616120
Alternatively Known As: Hex bolt M16x120, Hot dip galvanized hex head screw, ISO 4014 hex bolt, Steel hex bolt with shank, Metric hex bolt M16
Technical Specifications
- Thread type x nominal diameter (d1): M16
- Length (l1): 120 mm
- Head height (k1): 10 mm
- External drive (s1): WS24
- Standards: ISO 4014
- Material: Steel
- Property class: 8.8U
- Surface: Hot dip galvanized
- Head type: Hexagon head
- Drive type: Outer hexagon
- Thread type: Metric thread
- Thread form: Standard metric thread
- Thread design: Partial thread
- Thread length (metric thread) (b): 38 mm
- Design: With shaft
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 10mm x 120mm x 24mm
- Weight: 0.3 kg
Key Features
- Manufactured with undersized thread in tolerance class 6AZ (thread play) before surface protection is applied (DIN EN ISO 10684).
- ISO compliant after hot-dip galvanisation.
- Hexagon head with outer hexagon drive (WS24).
- Partial metric thread with shaft design.
- Hot dip galvanized surface for enhanced corrosion resistance.
- Property class 8.8U steel for high strength.
Professional Installation Requirements
- Installation should be performed by qualified personnel using appropriate tools to ensure correct torque and secure fastening.
Applications
- Construction: Structural steel connections
- Mechanical assemblies requiring strong, corrosion-resistant fasteners
- Industrial machinery and equipment assembly
- Outdoor and marine applications requiring hot dip galvanised protection
Standards & Compliance
- Complies with AS/NZS 1252 for high strength bolts and screws used in structural applications.
Environmental Benefits
- Hot dip galvanisation extends product life, reducing the need for frequent replacements and minimizing waste.
- RoHS-compliant, ensuring reduced hazardous substances in manufacturing.
Warranty Information
Wurth provides warranty against manufacturing defects as per standard terms and conditions.
Available Now
The Wurth Hex Head Screw with Shank ISO 4014 Steel 8.8U Hot Dip Galvanised M16x120 is available for immediate purchase, ideal for construction, industrial, and outdoor applications requiring durable and corrosion-resistant fasteners.
