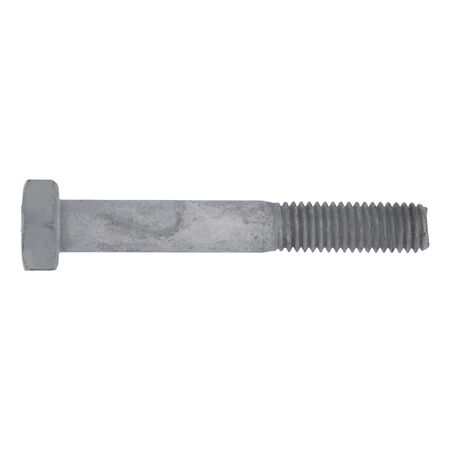

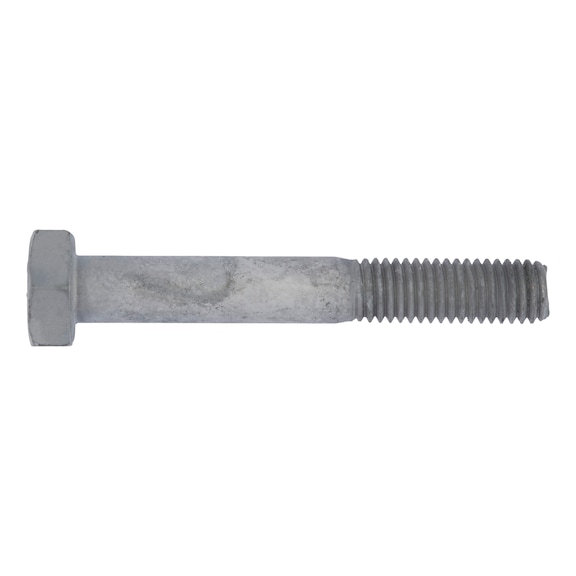

Hex Head Screw ISO 4014 | M16x130 | 8.8U Steel | Hot Dip Galvanised | by Wurth
Hex Head Screw ISO 4014 with M16x130 dimensions and 8.8U steel construction—ideal for construction and structural steelwork. Designed for high strength and corrosion resistance, this hot dip galvanized screw ensures durability in outdoor and corrosive environments, making it perfect for mechanical assemblies and structural applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hex Head Screw ISO 4014 | M16x130 | 8.8U Steel | Hot Dip Galvanised | by Wurth
Brand: Wurth
SKU: 59616130
Alternatively Known As: Hex bolt M16x130, Hot dip galvanized hex screw, ISO 4014 hex head bolt, Structural hex bolt, Metric hex screw
Technical Specifications
- Thread type x nominal diameter (d1): M16
- Length (l1): 130 mm
- Head height (k1): 10 mm
- External drive (s1): WS24
- Standards: ISO 4014
- Material: Steel
- Property class: 8.8U
- Surface: Hot dip galvanized
- Head type: Hexagon head
- Drive type: Outer hexagon
- Thread type: Metric thread
- Thread form: Standard metric thread
- Thread design: Partial thread
- Thread length (metric thread) (b): 44 mm
- Design: With shaft
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 10mm x 130mm x 24mm
- Weight: 0.3 kg
Key Features
- Manufactured with undersized thread in tolerance class 6AZ (thread play) before surface protection is applied (DIN EN ISO 10684).
- ISO compliant after hot-dip galvanisation.
- Do not use with nuts that have an oversized thread to avoid screwing-in problems and connection failure.
- Hexagon head with outer hexagon drive (WS24).
- Partial metric thread with shaft design.
- Hot dip galvanized surface for corrosion resistance.
- Property class 8.8U steel for high strength.
Professional Installation Requirements
- Installation by qualified personnel using appropriate tools to ensure correct torque and secure fastening is recommended.
Applications
- Construction and structural steelwork
- Mechanical assemblies requiring high strength fasteners
- Outdoor and corrosive environments needing corrosion-resistant screws
Standards & Compliance
- AS/NZS 4785 – Mechanical Fasteners (relevant for steel fasteners and bolts)
Environmental Benefits
- Hot dip galvanisation provides long-lasting corrosion protection reducing the need for frequent replacements.
- RoHS-compliant material ensures reduced hazardous substances.
Warranty Information
Warranty against manufacturing defects as per Wurth standard terms and conditions.
Available Now
The Wurth Hex Head Screw with Shank ISO 4014 Steel 8.8U Hot Dip Galvanised M16x130 is available now for immediate purchase. Ideal for construction, mechanical, and outdoor applications requiring durable and corrosion-resistant fasteners.
