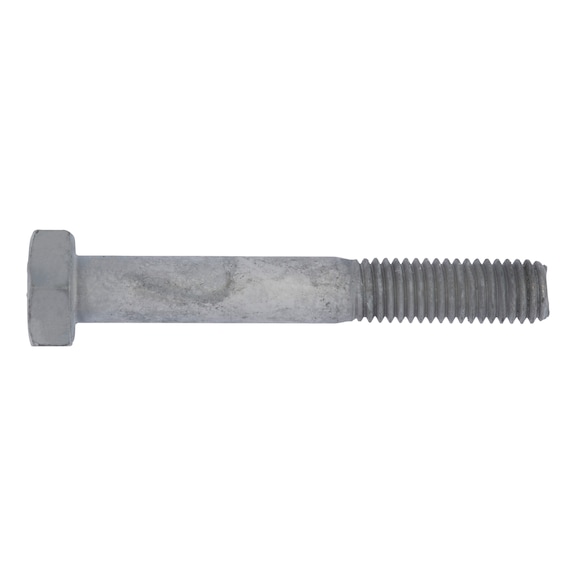

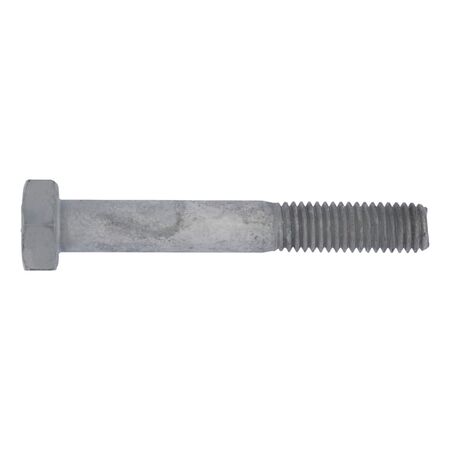

Hex Head Screw ISO 4014 | M16x80 | Hot Dip Galvanised | 8.8U Steel | by Wurth
Hex Head Screw ISO 4014 in M16x80 size is designed for robust fastening in construction and mechanical applications. Made from 8.8U steel and hot dip galvanized for superior corrosion resistance, this screw ensures durability and compliance with ISO standards. Ideal for outdoor and industrial environments, it provides reliable performance where strong, corrosion-resistant fasteners are essential.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hex Head Screw ISO 4014 | M16x80 | Hot Dip Galvanised | 8.8U Steel | by Wurth
Brand: Wurth
SKU: 5961680
Alternatively Known As: Hex bolt M16x80, Hot dip galvanized hex screw, ISO 4014 hex head bolt, Steel hex bolt with shank
Technical Specifications
- Thread type x nominal diameter (d1): M16
- Length (l1): 80 mm
- Head height (k1): 10 mm
- External drive (s1): WS24
- Standards: ISO 4014
- Material: Steel
- Property class: 8.8U
- Surface: Hot dip galvanized
- Head type: Hexagon head
- Drive type: Outer hexagon
- Thread type: Metric thread
- Thread form: Standard metric thread
- Thread design: Partial thread
- Thread length (metric thread) (b): 38 mm
- Design: With shaft
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 10mm x 80mm x 24mm
- Weight: 0.15 kg
Key Features
- Manufactured with undersized thread in tolerance class 6AZ (thread play) before surface protection is applied (DIN EN ISO 10684)
- ISO compliant after hot-dip galvanisation
- Do not use with nuts that have an oversized thread to avoid screwing-in problems and connection failure
- Hexagon head with outer hexagon drive (WS24)
- Partial metric thread with shaft design
- RoHS-compliant
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure proper torque and secure fastening according to ISO 4014 standards.
Applications
- Construction and structural applications requiring strong, corrosion-resistant fasteners
- Mechanical assemblies needing ISO compliant hex head screws
- Outdoor and industrial environments where hot dip galvanisation is essential
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Hot dip galvanisation provides long-lasting corrosion resistance, reducing the need for frequent replacements and minimizing waste
Warranty Information
Warranty against manufacturing defects as per Wurth standard terms and conditions.
Available Now
The Wurth Hex Head Screw with Shank ISO 4014 Steel 8.8U Hot Dip Galvanised M16x80 is available for immediate purchase, ideal for construction, mechanical, and industrial fastening applications.
