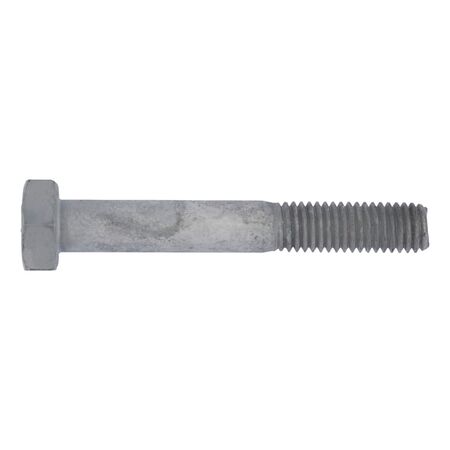

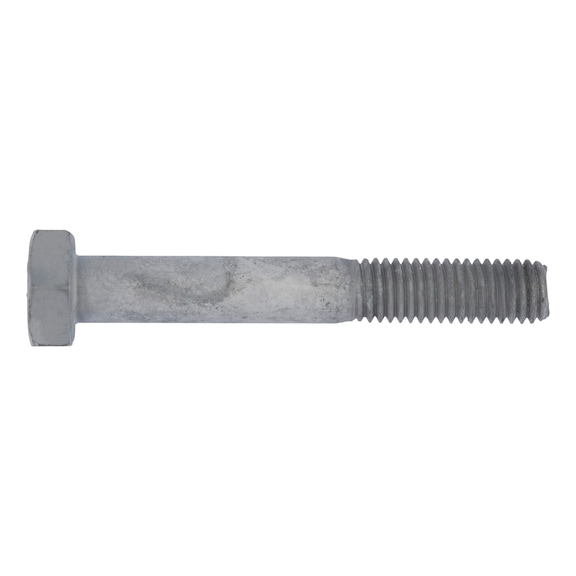

Hex Head Screw ISO 4014 | M16x90 | 8.8U Steel | Hot Dip Galvanised | by Wurth
Hex Head Screw ISO 4014 with M16x90 dimensions and 8.8U steel construction—ideal for construction and mechanical applications. Designed for outdoor and industrial use, this hot dip galvanized screw offers superior corrosion resistance and compliance with ISO standards, ensuring durability and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hex Head Screw ISO 4014 | M16x90 | 8.8U Steel | Hot Dip Galvanised | by Wurth
Brand: Wurth
SKU: 5961690
Alternatively Known As: Hex bolt M16x90, Hot dip galvanized hex screw, ISO 4014 hex head bolt, Steel hex bolt with shank
Technical Specifications
- Thread type x nominal diameter: M16
- Length: 90 mm
- Head height: 10 mm
- External drive: WS24
- Standards: ISO 4014
- Material: Steel
- Property class: 8.8U
- Surface: Hot dip galvanized
- Head type: Hexagon head
- Drive type: Outer hexagon
- Thread type: Metric thread
- Thread form: Standard metric thread
- Thread design: Partial thread
- Thread length: 38 mm
- Design: With shaft
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 10mm x 90mm x 24mm
- Weight: 0.2 kg
Key Features
- Manufactured with undersized thread in tolerance class 6AZ (thread play) before surface protection
- Hot dip galvanised surface for enhanced corrosion resistance
- ISO 4014 compliant after galvanisation
- Hexagon head with outer hexagon drive (WS24)
- Partial metric thread with shaft design
- RoHS-compliant
Professional Installation Requirements
- Installation by qualified personnel using appropriate tools to ensure correct torque and thread engagement is recommended.
Applications
- Construction and structural applications requiring strong, corrosion-resistant fasteners
- Mechanical assemblies needing ISO 4014 compliant hex head screws
- Outdoor and industrial environments where hot dip galvanised protection is essential
Standards & Compliance
- AS/NZS 4780 – Hot-dip galvanized coatings on fabricated ferrous articles
Environmental Benefits
- Hot dip galvanisation extends product life reducing waste and replacement frequency
- RoHS-compliant ensuring reduced hazardous substances
Warranty Information
Warranty against manufacturing defects as per Wurth standard policy.
Available Now
The Wurth Hex Head Screw with Shank ISO 4014 Steel 8.8U Hot Dip Galvanised M16x90 is available for immediate purchase, ideal for construction, mechanical, and industrial fastening applications.
