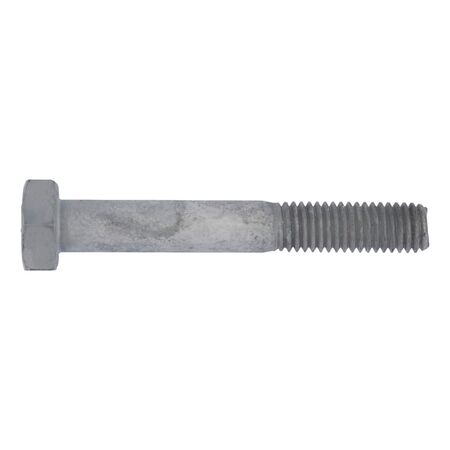

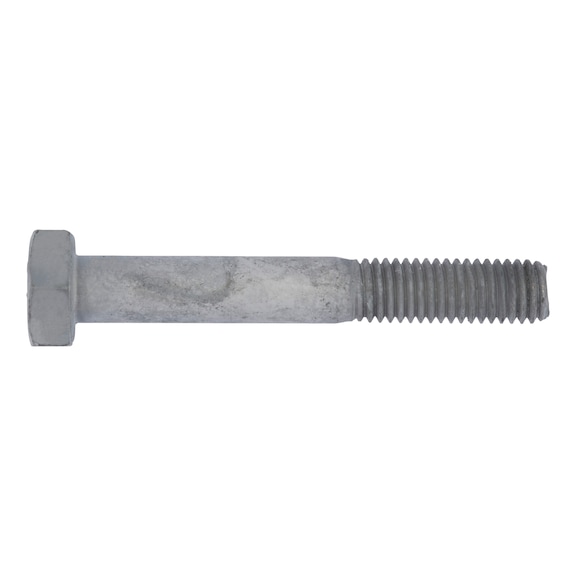

Hex Head Screw ISO 4014 | M20x110 | Hot Dip Galvanised | 8.8U Steel | by Wurth
Hex Head Screw ISO 4014 M20x110 is designed for construction and mechanical applications, featuring a hot dip galvanised surface for corrosion resistance and 8.8U steel for high strength. Ideal for outdoor and industrial environments, this screw ensures secure fastening and compliance with ISO standards, making it a reliable choice for professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hex Head Screw ISO 4014 | M20x110 | Hot Dip Galvanised | 8.8U Steel | by Wurth
Brand: Wurth
SKU: 59620110
Alternatively Known As: Hex bolt M20x110, Hot dip galvanized hex head screw, ISO 4014 hex bolt, Steel hex bolt with shank

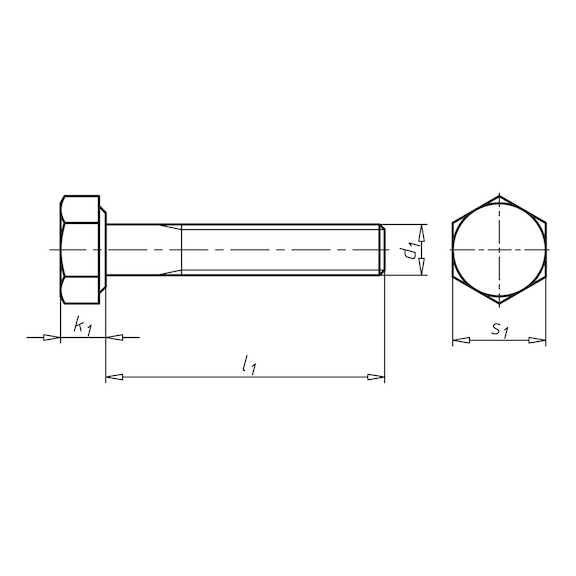

Technical Specifications
- Thread type x nominal diameter: M20
- Length: 110 mm
- Head height: 13 mm
- External drive: WS30
- Standards: ISO 4014
- Material: Steel
- Property class: 8.8U
- Surface: Hot dip galvanized
- Head type: Hexagon head
- Drive type: Outer hexagon
- Thread type: Metric thread
- Thread form: Standard metric thread
- Thread design: Partial thread
- Thread length: 46 mm
- Design: With shaft
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 13mm x 110mm x 30mm
- Weight: 0.3 kg
Key Features
- Manufactured with undersized thread in tolerance class 6AZ (thread play) before surface protection
- Hot dip galvanised surface protection compliant with DIN EN ISO 10684
- ISO 4014 standard compliant after galvanisation
- Hexagon head with outer hexagon drive (WS30)
- Partial metric thread with shaft design
- Property class 8.8U steel for high strength
- RoHS-compliant
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure correct torque and secure fastening, especially in structural applications.
Applications
- Construction and structural applications requiring strong, corrosion-resistant fasteners
- Mechanical assemblies needing ISO 4014 compliant hex head screws
- Outdoor and industrial environments where hot dip galvanised protection is essential
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation) for electrical fasteners where applicable
- Complies with AS/NZS 1170 – Structural Design Actions for construction and building applications
Environmental Benefits
- Hot dip galvanised coating extends product life, reducing replacement frequency and waste
- RoHS-compliant, ensuring reduced hazardous substances
Warranty Information
Wurth provides warranty against manufacturing defects as per company policy.
Available Now
The Wurth Hex Head Screw ISO 4014 M20x110 is available now for immediate purchase. Ideal for construction, mechanical, and industrial applications requiring durable and corrosion-resistant fasteners.
