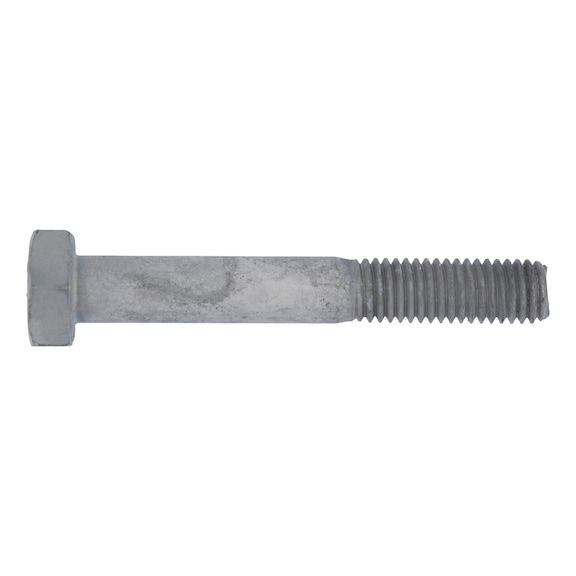

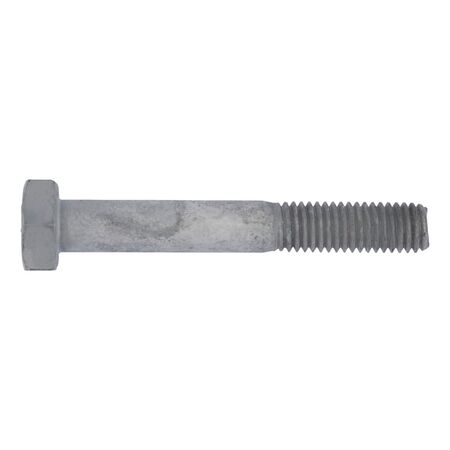

Hex Head Screw ISO 4014 Steel 8.8U | Hot Dip Galvanised | M16x140 | WS24 Drive | by Wurth
Hex Head Screw ISO 4014 Steel 8.8U is designed for robust fastening in construction and mechanical assemblies. With a hot dip galvanized surface for superior corrosion resistance and an outer hexagon drive (WS24), this screw is perfect for outdoor and industrial applications. Ideal for structural steel connections, it ensures secure fastening and compliance with standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hex Head Screw ISO 4014 Steel 8.8U | Hot Dip Galvanised | M16x140 | WS24 Drive | by Wurth
Brand: Wurth
SKU: 59616140
Alternatively Known As: Hex bolt M16x140, Hot dip galvanized hex screw, ISO 4014 hex head bolt, Structural hex bolt, Wurth hex head fastener
Technical Specifications
- Thread type x nominal diameter: M16
- Length: 140 mm
- Head height: 10 mm
- External drive: WS24
- Standards: ISO 4014
- Material: Steel
- Property class: 8.8U
- Surface: Hot dip galvanized
- Head type: Hexagon head
- Drive type: Outer hexagon
- Thread type: Metric thread
- Thread form: Standard metric thread
- Thread design: Partial thread
- Thread length: 44 mm
- Design: With shaft
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 10mm x 140mm x 24mm
- Weight: 0.3 kg
Key Features
- Manufactured with undersized thread in tolerance class 6AZ (thread play) before surface protection
- ISO compliant after hot-dip galvanisation
- Hot dip galvanized surface for enhanced corrosion resistance
- Hexagon head with outer hexagon drive (WS24)
- Partial metric thread with shaft design
- RoHS-compliant
Professional Installation Requirements
- Installation by qualified personnel using appropriate torque tools is recommended to ensure secure fastening and compliance with structural standards.
Applications
- Construction: Structural steel connections
- Mechanical assemblies requiring strong, corrosion-resistant fasteners
- Outdoor and industrial environments needing hot dip galvanised protection
Standards & Compliance
- AS/NZS 4762 – High tensile bolts for structural engineering
Environmental Benefits
- Hot dip galvanisation extends product life reducing replacement frequency and waste
- RoHS-compliant ensuring reduced hazardous substances
Warranty Information
Warranty against manufacturing defects as per Wurth standard terms and conditions.
Available Now
The Wurth Hex Head Screw ISO 4014 Steel 8.8U Hot Dip Galvanised M16x140 is available for immediate purchase, ideal for construction and industrial fastening applications.
