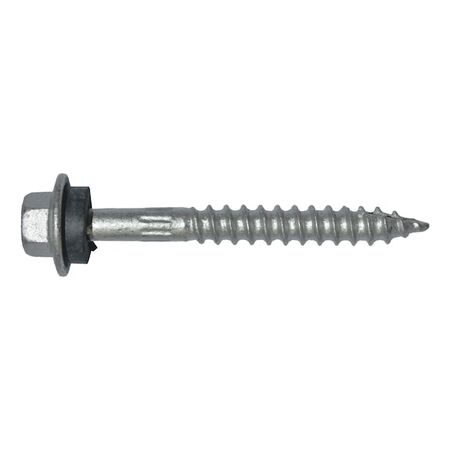

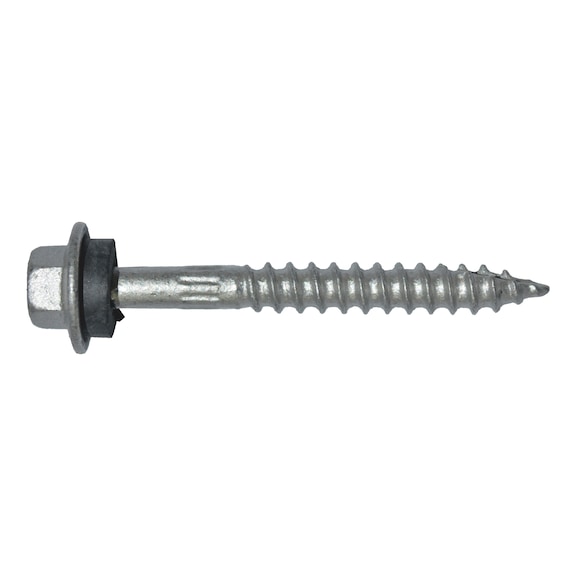

Hex Head Type 17 Wood Screw with Flange & Rubber Seal | Self-Drilling Tip | Class 4 Coating | by Wurth
Hex head Type 17 wood screw with flange and rubber seal is designed for reliable fastening in timber and thin steel applications. Featuring a self-drilling tip that eliminates the need for pre-drilling, this screw is perfect for external use in coastal areas. The Class 4 coating ensures durability and corrosion resistance, making it ideal for construction and outdoor projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hex Head Type 17 Wood Screw with Flange & Rubber Seal | Self-Drilling Tip | Class 4 Coating | by Wurth
Brand: Wurth
SKU: 5047000028
Alternatively Known As: Hex flange wood screw, Type 17 self-drilling screw, Weather sealed wood screw, Timber fixing screw with rubber seal
Technical Specifications
- Material: Steel
- Surface: Class 4 coating
- Nominal diameter: 5.5 mm
- Length: 65 mm
- Thread length: 42.6 mm
- Head diameter: 14.3 mm
- Head type: Hexagon head with flange
- Dimensions (H x L x W): 14.3mm x 65mm x 14.3mm
- Weight: 0.05 kg
Key Features
- Flanged hex head screw with rubber washer under head for weather sealing
- Type 17 sharp self-drilling tip requires no pre-drilling even in hard woods and thin steel sheeting
- Cut-out aids in waste removal similar to a drill bit
- Prevents wood fibres separating for close to edge fastening
- Ribbed shank improves corrosion resistance by protecting the fastener shank from severe scratching
- Class 4 coating suitable for external applications
Professional Installation Requirements
- Installation by a qualified tradesperson or professional is recommended to ensure proper fastening and weather sealing.
Applications
- Fixing to timber sub-structures
- External applications in coastal areas with moderate to high salt levels
- Fastening thin steel sheeting
- Close to edge fastening in wood
Standards & Compliance
- Complies with AS/NZS 4786 - Timber fasteners (implied standard for timber screws and corrosion resistance)
Environmental Benefits
- Durable corrosion-resistant coating extends product life reducing replacement frequency
- Self-drilling tip reduces need for additional tools and energy consumption during installation
Warranty Information
Wurth provides a standard warranty against manufacturing defects. Please refer to Wurth's warranty policy for details.
Available Now
The Wurth Hex Head Type 17 Wood Screw with flange and rubber seal 5.5x65mm is available now for immediate purchase. Ideal for timber and metal fastening in construction and outdoor applications.
