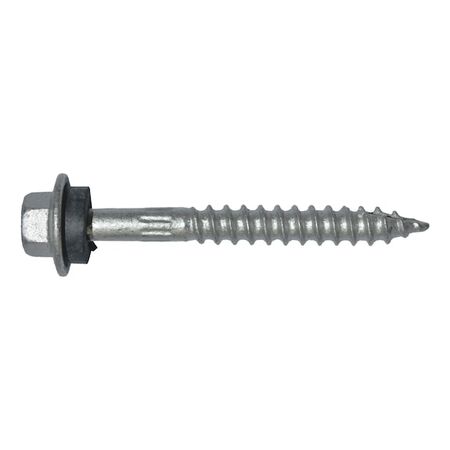

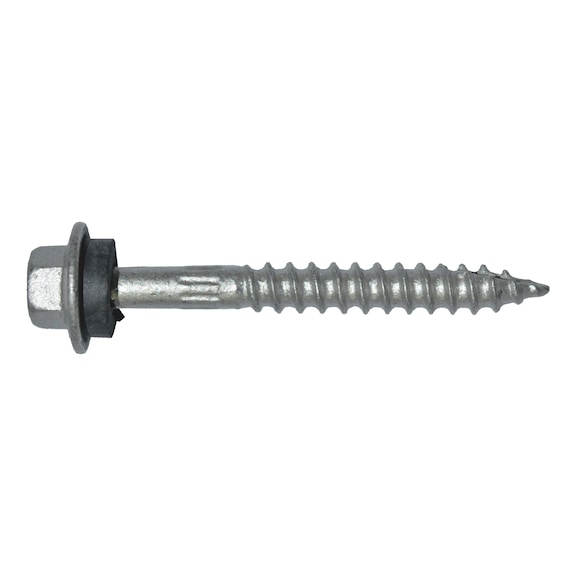

Hex Head Type 17 Wood Screw with Flange & Rubber Seal | Self-Drilling Tip | Class 4 Coating | by Wurth
Hex head Type 17 wood screw with flange and rubber seal is designed for reliable fastening in timber and thin steel applications. Featuring a sharp self-drilling tip, it eliminates the need for pre-drilling, making it ideal for external use in coastal areas. The Class 4 coating ensures corrosion resistance, while the rubber washer provides effective weather sealing, perfect for construction and outdoor projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hex Head Type 17 Wood Screw with Flange & Rubber Seal | Self-Drilling Tip | Class 4 Coating | by Wurth
Brand: Wurth
SKU: 5047000029
Alternatively Known As: Hex flange wood screw, Type 17 self-drilling screw, Weather sealed wood screw, Timber fixing screw with rubber washer
Technical Specifications
- Material: Steel
- Surface: Class 4 coating
- Nominal diameter: 6.3 mm
- Length: 50 mm
- Thread length: 34.3 mm
- Head diameter: 14.3 mm
- Head type: Hexagon head with flange
- Tip: Type 17 sharp self-drilling
- Dimensions (H x L x W): 6.3mm x 50mm x 14.3mm
- Weight: 0.05 kg
Key Features
- Flanged hex head screw with rubber washer under head for weather sealing
- Type 17 sharp self-drilling tip requires no pre-drilling even in hard woods and thin steel sheeting
- Cut-out aids in waste removal similar to a drill bit
- Prevents wood fibres separating for close to edge fastening
- Ribbed shank improves corrosion resistance by protecting the fastener shank from severe scratching
- Class 4 coating suitable for external applications
Professional Installation Requirements
- Installation by a qualified tradesperson or professional is recommended to ensure proper fastening and sealing.
Applications
- Fixing to timber sub-structures
- External applications in coastal areas with moderate to high salt levels
- Fastening thin steel sheeting
- Close to edge fastening in wood and metal
Standards & Compliance
- Complies with AS/NZS 4785 - Wood Screws (implied for wood screws and fasteners)
Environmental Benefits
- Class 4 coating extends product life reducing replacement frequency and waste
- Self-drilling tip eliminates need for pre-drilling, saving time and energy
Warranty Information
Wurth standard warranty against manufacturing defects applies.
Available Now
The Wurth Hex Head Type 17 Wood Screw with flange and rubber seal 6.3x50mm is available now for immediate purchase. Ideal for timber and metal fastening in construction and external applications.
