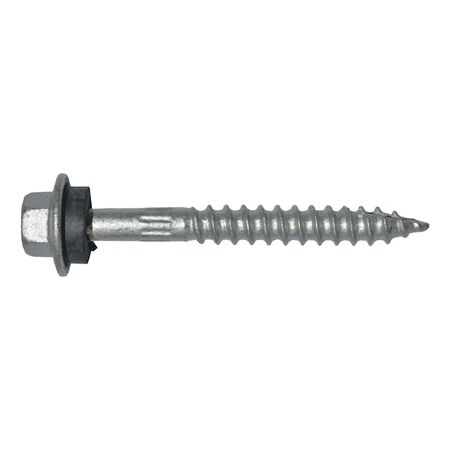

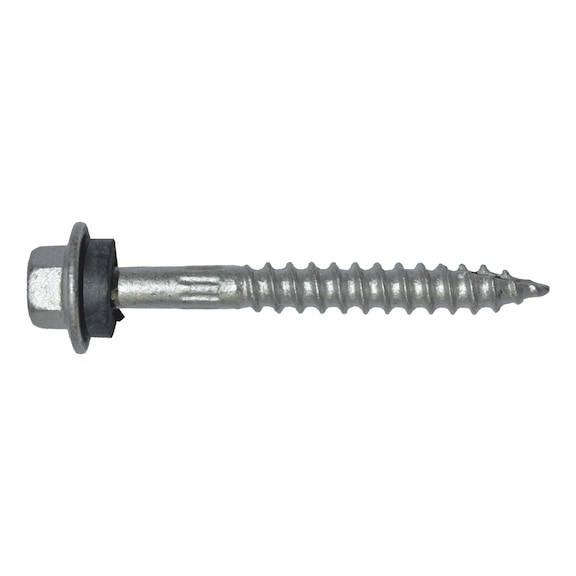

Hex Head Type 17 Wood Screw with Flange & Rubber Seal | Self-Drilling Tip | Corrosion Resistant | by Wurth
Hex head Type 17 wood screw with flange and rubber seal is designed for reliable fastening in timber and thin steel applications. Featuring a self-drilling tip that eliminates pre-drilling, this screw is perfect for outdoor use in coastal areas. Its durable Class 4 coating ensures corrosion resistance, making it ideal for construction projects requiring weather sealing and close-to-edge fastening.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hex Head Type 17 Wood Screw with Flange & Rubber Seal | Self-Drilling Tip | Corrosion Resistant | by Wurth
Brand: Wurth
SKU: 5047000031
Alternatively Known As: Hex flange wood screw, Type 17 self-drilling screw, Weather sealed wood screw, Timber fixing screw with rubber washer
Technical Specifications
- Material: Steel
- Surface: Class 4 coating
- Nominal diameter: 6.3 mm
- Length: 75 mm
- Thread length: 48.9 mm
- Head diameter: 14.4 mm
- Head type: Hexagon head with flange
- Dimensions (H x L x W): 6mm x 75mm x 14mm
- Weight: 0.05 kg
Key Features
- Flanged hex head screw with rubber washer under head for weather sealing
- Type 17 sharp self-drilling tip requires no pre-drilling even in hard woods and thin steel sheeting
- Cut-out aids in waste removal similar to a drill bit
- Prevents wood fibres separating for close to edge fastening
- Ribbed shank improves corrosion resistance by protecting fastener shank from scratching
- Class 4 coating suitable for external applications in coastal areas
Professional Installation Requirements
- Installation by a qualified tradesperson is recommended to ensure proper fastening and sealing.
Applications
- Fixing timber sub-structures
- Fastening thin steel sheeting
- External applications in coastal areas with moderate to high salt levels
- Close to edge fastening in wood and metal
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable corrosion-resistant coating extends product life reducing replacement frequency
- Self-drilling tip eliminates need for pre-drilling reducing energy and tool use
Warranty Information
Wurth provides warranty against manufacturing defects as per company policy.
Available Now
The Wurth Hex Head Type 17 Wood Screw with flange and rubber seal is available for immediate purchase, ideal for timber and metal fastening applications in construction and outdoor environments.
