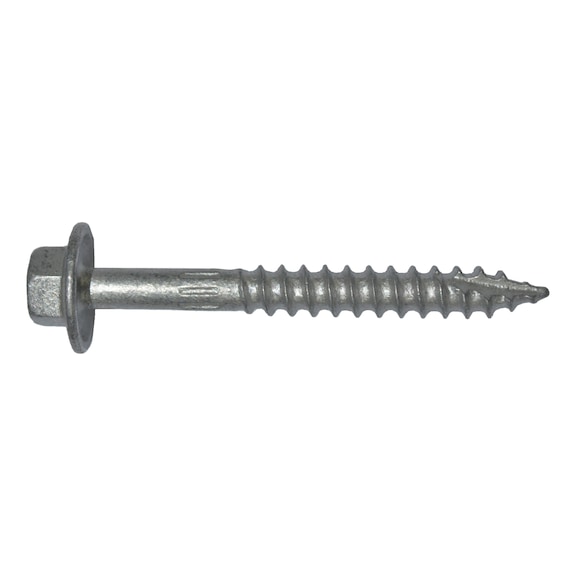

Hex Head Type 17 Wood Screw with Flange | Self-Drilling Tip | Class 4 Coating | Corrosion Resistant | by Wurth
Hex head Type 17 wood screw with flange is designed for effortless fastening in timber sub-structures, featuring a sharp self-drilling tip that eliminates the need for pre-drilling, even in hard woods. With a Class 4 coating, it's perfect for external applications in coastal areas, ensuring durability and resistance to corrosion. Ideal for professional tradespeople looking for reliable and efficient fastening solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hex Head Type 17 Wood Screw with Flange | Self-Drilling Tip | Class 4 Coating | Corrosion Resistant | by Wurth
Brand: Wurth
SKU: 5047000008
Alternatively Known As: Type 17 Wood Screw, Hex Flange Wood Screw, Self-Drilling Wood Screw, Timber Fixing Screw
Technical Specifications
- Material: Steel
- Surface: Class 4 coating
- Nominal diameter: 5.5 mm
- Length: 50 mm
- Thread length: 33.7 mm
- Head diameter: 14.2 mm
- Head type: Hexagon head with flange
- Dimensions (H x L x W): 50mm x 50mm x 14mm
- Weight: 0.02 kg
Key Features
- Flanged hex head design
- Type 17 sharp self-drilling tip requiring no pre-drilling, even in hard woods and thin steel sheeting
- Cut-out aids in waste removal similar to a drill bit
- Prevents wood fibres separating allowing close to edge fastening
- Ribbed shank improves corrosion resistance by protecting the fastener shank from severe scratching
- Class 4 coating suitable for external applications in coastal areas
- Screws without rubber seal suitable for secret clip profiles and roofing battens
- Complies with AS3566 Class 4 coating standard
Professional Installation Requirements
- Installation by a professional or experienced tradesperson is recommended to ensure proper fastening and compliance with building standards.
Applications
- Fixing to timber sub-structures
- External applications in coastal areas with moderate to high salt levels
- Secret clip profiles and roofing battens
Standards & Compliance
- Complies with AS3566 Class 4 coating standard for corrosion resistance
Environmental Benefits
- Class 4 coating extends product life reducing the need for frequent replacements
- Self-drilling tip reduces installation time and waste
Warranty Information
Wurth provides a standard warranty against manufacturing defects. Please refer to Wurth's official warranty policy for details.
Available Now
The Wurth Hex Head Type 17 Wood Screw with Flange is available for immediate purchase, ideal for timber sub-structure fixing and external coastal applications.
