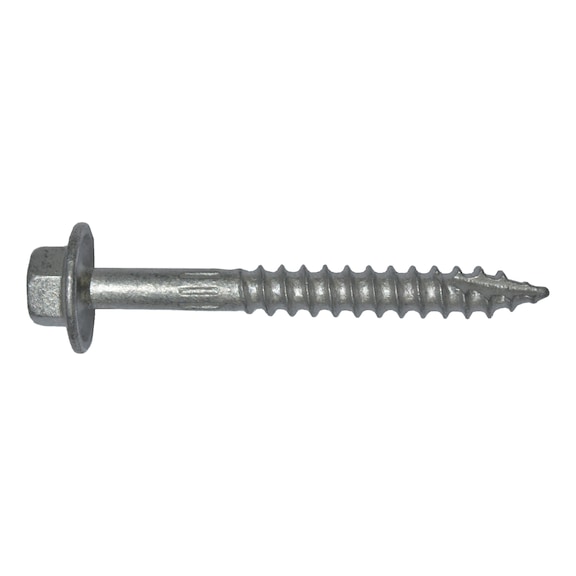

Hex Head Type 17 Wood Screw with Flange | Self-Drilling Tip | Class 4 Coating | Corrosion Resistant | by Wurth
Hex head Type 17 wood screw with flange is designed for effortless fastening in timber sub-structures and external applications. Featuring a sharp self-drilling tip, it eliminates the need for pre-drilling, making it ideal for hard woods and thin steel sheeting. The Class 4 coating ensures durability in coastal areas, while the flanged design provides enhanced grip and stability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hex Head Type 17 Wood Screw with Flange | Self-Drilling Tip | Class 4 Coating | Corrosion Resistant | by Wurth
Brand: Wurth
SKU: 5047000009
Alternatively Known As: Type 17 wood screw, hex flange screw, self-drilling wood screw, timber fixing screw
Technical Specifications
- Material: Steel
- Surface: Class 4 coating
- Nominal diameter: 5.5 mm
- Length: 65 mm
- Thread length: 45.3 mm
- Head diameter: 14.5 mm
- Head type: Hexagon head with flange
- Dimensions (H x L x W): 5.5mm x 65mm x 14.5mm
- Weight: 0.05 kg
Key Features
- Flanged hex head design
- Type 17 sharp self-drilling tip requiring no pre-drilling even in hard woods and thin steel sheeting
- Cut-out aids in waste removal similar to a drill bit
- Prevents wood fibres separating for close to edge fastening
- Ribbed shank improves corrosion resistance by protecting the fastener shank from severe scratching
- Class 4 coating suitable for external applications in coastal areas
- Screws without rubber seal suitable for secret clip profiles and roofing battens
Professional Installation Requirements
- Installation by a professional or experienced tradesperson is recommended to ensure proper fastening and corrosion resistance.
Applications
- Fixing to timber sub-structures
- External applications in coastal areas with moderate to high salt levels
- Secret clip profiles and roofing battens
- Close to edge fastening in wood and thin steel sheeting
Standards & Compliance
- Complies with AS3566 for corrosion-resistant fasteners
Environmental Benefits
- Class 4 coating extends product life reducing the need for frequent replacements
- No pre-drilling required reduces energy and tool use during installation
Warranty Information
Wurth provides a standard warranty against manufacturing defects. Please refer to Wurth's official warranty policy for details.
Available Now
The Wurth Hex Head Type 17 Wood Screw with Flange is available for immediate purchase, ideal for timber sub-structure fixing and external coastal applications.
