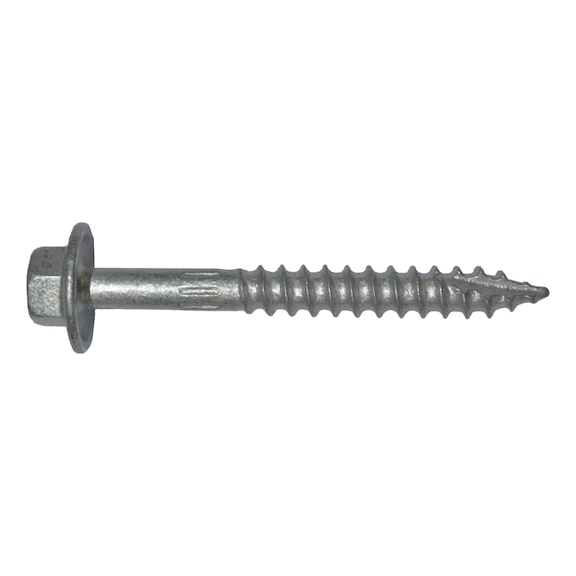

Hex Head Type 17 Wood Screw with Flange | Self-Drilling Tip | Class 4 Coating | by Wurth
Hex head Type 17 wood screw with flange is designed for effortless fastening in timber sub-structures and external applications. Featuring a sharp self-drilling tip that eliminates the need for pre-drilling, this screw is perfect for use in coastal areas with high salt levels. The Class 4 coating ensures superior corrosion resistance, making it ideal for roofing battens and metal sheeting applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hex Head Type 17 Wood Screw with Flange | Self-Drilling Tip | Class 4 Coating | by Wurth
Brand: Wurth
SKU: 5047000010
Alternatively Known As: Hex flange wood screw, Type 17 self-drilling screw, Flanged hex head timber screw, Wurth wood fixing screw
Technical Specifications
- Material: Steel
- Surface: Class 4 coating (CL4)
- Nominal diameter: 6.3 mm
- Length: 50 mm
- Thread length: 33.6 mm
- Head diameter: 14.6 mm
- Head type: Hexagon head with flange
- Type 17 sharp self-drilling tip
- Dimensions (H x L x W): 6.3mm x 50mm x 14.6mm
- Weight: 0.05 kg
Key Features
- Flanged hex head design
- Type 17 sharp self-drilling tip requires no pre-drilling, even in hard woods and thin steel sheeting
- Cut-out aids in waste removal similar to a drill bit
- Prevents wood fibres separating, suitable for close to edge fastening
- Ribbed shank improves corrosion resistance by protecting the fastener shank from severe scratching
- Class 4 coating suitable for external coastal applications
- Screws without rubber seal suitable for secret clip profiles and roofing battens
Professional Installation Requirements
- Installation by a professional or experienced tradesperson is recommended to ensure proper fastening and corrosion resistance, especially in coastal environments.
Applications
- Fixing to timber sub-structures
- External applications in coastal areas with moderate to high salt levels
- Secret clip profiles and roofing battens
- Fixing metal sheeting to timber
Standards & Compliance
- Complies with AS/NZS 3566 for high corrosion resistance fasteners
Environmental Benefits
- Class 4 coating extends product life reducing waste and replacement frequency
- No pre-drilling reduces energy and tool use during installation
Warranty Information
Wurth provides a standard warranty against manufacturing defects. Please refer to Wurth's official warranty policy for details.
Available Now
The Wurth Hex Head Type 17 Wood Screw with Flange is available for immediate purchase. Ideal for timber sub-structure fixing and external applications requiring corrosion resistance.
