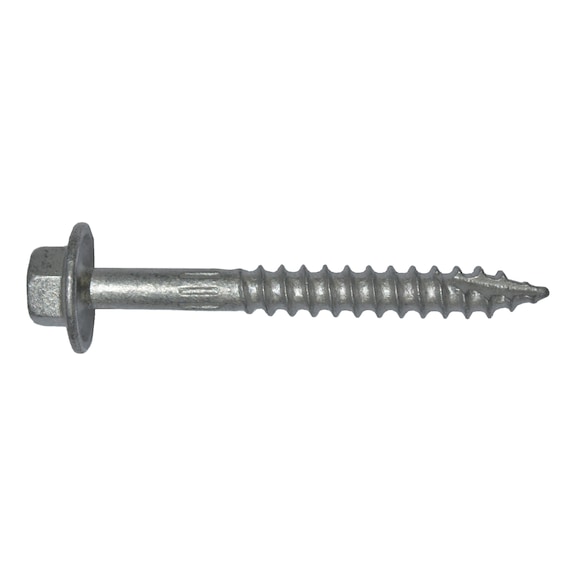

Hex Head Type 17 Wood Screw with Flange | Self-Drilling Tip | Class 4 Coating | Corrosion Resistant | by Wurth
The Hex Head Type 17 Wood Screw with Flange is designed for effortless fastening in timber and roofing applications. Featuring a sharp self-drilling tip that eliminates the need for pre-drilling, this screw is perfect for hard woods and thin steel sheeting. With a Class 4 coating, it offers excellent corrosion resistance, making it ideal for external use in coastal areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hex Head Type 17 Wood Screw with Flange | Self-Drilling Tip | Class 4 Coating | Corrosion Resistant | by Wurth
Brand: Wurth
SKU: 5047000013
Alternatively Known As: Hex flange wood screw, Type 17 wood screw, self-drilling timber screw, flanged hex head screw
Technical Specifications
- Material: Steel
- Surface: Class 4 coating
- Nominal diameter: 6.3 mm
- Length: 90 mm
- Thread length: 59.8 mm
- Head diameter: 14.6 mm
- Head type: Hexagon head with flange
- Dimensions (H x L x W): 6.3mm x 90mm x 14.6mm
- Weight: 0.05 kg
Key Features
- Flanged hex head design
- Type 17 sharp self-drilling tip requiring no pre-drilling, even in hard woods and thin steel sheeting
- Cut-out aids in waste removal similar to a drill bit
- Prevents wood fibres separating allowing close to edge fastening
- Ribbed shank improves corrosion resistance by protecting the fastener shank from severe scratching
- Class 4 coating suitable for external applications in coastal areas
- Screws without rubber seal suitable for secret clip profiles and roofing battens
Professional Installation Requirements
- Installation by a professional or experienced tradesperson is recommended to ensure proper fastening and compliance with building standards.
Applications
- Fixing to timber sub-structures
- External applications in coastal areas with moderate to high salt levels
- Secret clip profiles and roofing battens
Standards & Compliance
- Complies with AS3566 for corrosion-resistant fasteners
Environmental Benefits
- Class 4 coating extends product life reducing waste and replacement frequency
- No pre-drilling required reduces energy and tool use during installation
Warranty Information
Wurth provides a standard warranty against manufacturing defects. Please refer to Wurth's official warranty policy for details.
Available Now
The Wurth Hex Head Type 17 Wood Screw with Flange is available for immediate purchase, ideal for timber construction and roofing applications.
