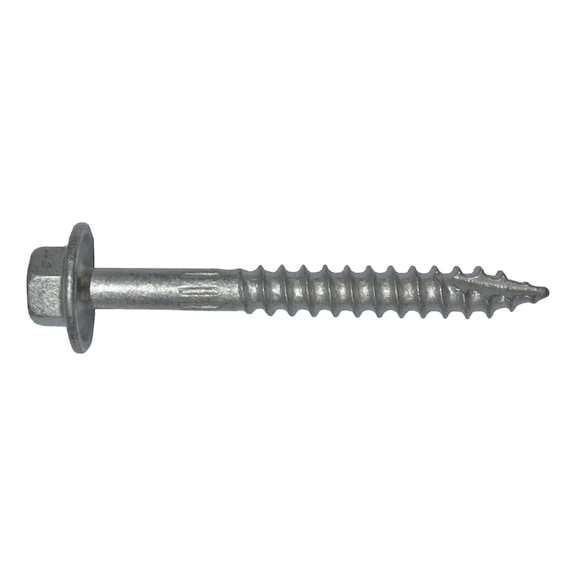

Hex Head Type 17 Wood Screw with Flange | Self-Drilling Tip | Corrosion-Resistant | @Pack of 100 | by Wurth
Hex Head Type 17 wood screws with flange are designed for effortless fastening in timber sub-structures. Featuring a sharp self-drilling tip that eliminates the need for pre-drilling, these screws ensure close-to-edge fastening without splitting wood fibers. Ideal for both hardwoods and thin steel sheeting, they come with a durable Class 4 coating, making them perfect for external applications in coastal areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hex Head Type 17 Wood Screw with Flange | Self-Drilling Tip | Corrosion-Resistant | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 5047000012
Alternatively Known As: Hex flange wood screw, Type 17 wood screw, self-drilling timber screw, hex head timber screw
Technical Specifications
- Material: Steel
- Surface: Class 4 coating
- Nominal diameter: 6.3 mm
- Length: 75 mm
- Thread length (tapping screw thread): 49.7 mm
- Head diameter: 14.5 mm
- Head type: Hexagon head with flange
- Dimensions (H x L x W): 6.3mm x 75mm x 14.5mm
- Weight: 0.05 kg
Key Features
- Flanged hex head design
- Type 17 sharp self-drilling tip requiring no pre-drilling
- Cut-out aids in waste removal similar to a drill bit
- Prevents wood fibres separating for close to edge fastening
- Ribbed shank improves corrosion resistance by protecting the fastener shank from scratching
- Class 4 coating suitable for external applications in coastal areas with moderate to high salt levels
- Screws without rubber seal suitable for secret clip profiles and roofing battens
Professional Installation Requirements
- Installation by a qualified tradesperson or professional is recommended to ensure proper fastening and structural integrity.
Applications
- Fixing timber sub-structures
- Suitable for hard woods and thin steel sheeting
- Close to edge fastening
- Secret clip profiles and roofing battens
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
- Complies with AS3566 for corrosion resistance
Environmental Benefits
- Durable corrosion-resistant coating extends product life reducing replacement frequency
- Self-drilling tip reduces need for additional tools and energy consumption during installation
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth for specific warranty details.
Available Now
Wurth Hex Head Type 17 Wood Screw with Flange 100 PCS is available now for immediate purchase. Ideal for timber sub-structure fixing and roofing applications.
