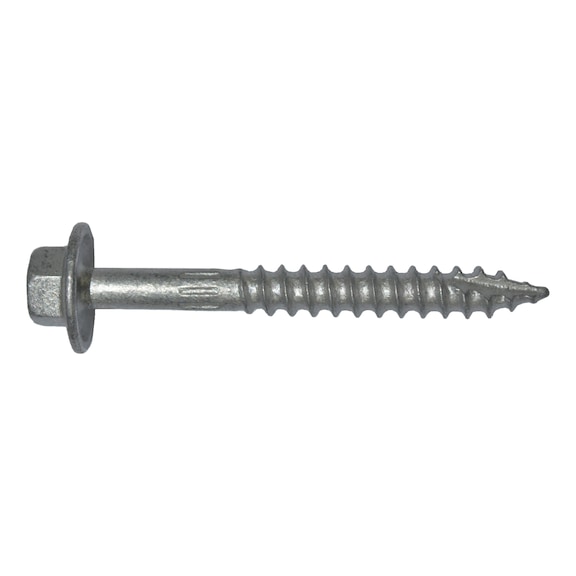

Hex Head Type 17 Wood Screw with Flange | Self-Drilling Tip | Corrosion Resistant | @Pack of 100 | by Wurth
Hex head Type 17 wood screws with flange are designed for effortless fastening in timber and metal applications. Featuring a sharp self-drilling tip that eliminates the need for pre-drilling, these screws ensure a secure fit while preventing wood fibers from separating. Ideal for coastal areas, they come with a Class 4 coating for enhanced corrosion resistance, making them perfect for roofing battens and secret clip profiles.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hex Head Type 17 Wood Screw with Flange | Self-Drilling Tip | Corrosion Resistant | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 5047000014
Alternatively Known As: Hex flange wood screw, Type 17 self-drilling screw, timber fixing screw, corrosion resistant wood screw
Technical Specifications
- Material: Steel
- Surface: Class 4 coating
- Nominal diameter: 6.3 mm
- Length: 100 mm
- Thread length: 58.6 mm
- Head diameter: 14.5 mm
- Head type: Hexagon head with flange
- Dimensions (H x L x W): 6.3mm x 100mm x 14.5mm
- Weight: 0.05 kg
Key Features
- Flanged hex head design
- Type 17 sharp self-drilling tip requires no pre-drilling
- Cut-out aids in waste removal similar to a drill bit
- Prevents wood fibres separating for close to edge fastening
- Ribbed shank improves corrosion resistance by protecting the fastener shank from scratching
- Class 4 coating suitable for moderate to high salt levels in coastal areas
- Screws without rubber seal suitable for secret clip profiles and roofing battens
Professional Installation Requirements
- Installation by a professional or experienced tradesperson is recommended to ensure proper fastening and corrosion resistance.
Applications
- Fixing to timber sub-structures
- Suitable for external applications in coastal areas
- Used for secret clip profiles and roofing battens
- Close to edge fastening in wood and thin steel sheeting
Standards & Compliance
- Complies with AS/NZS 3566 for corrosion-resistant fasteners
Environmental Benefits
- Class 4 coating extends product life reducing waste
- No pre-drilling reduces energy and tool use during installation
Warranty Information
Wurth offers a standard warranty against manufacturing defects; please refer to Wurth's official warranty policy for details.
Available Now
Wurth Hex Head Type 17 Wood Screw with Flange 100 PCS is available for immediate purchase, ideal for timber and metal fixing applications in residential and commercial construction.
